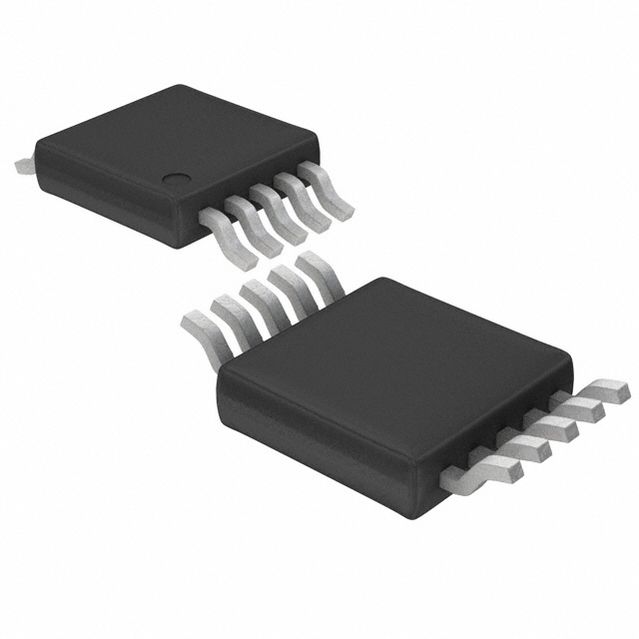

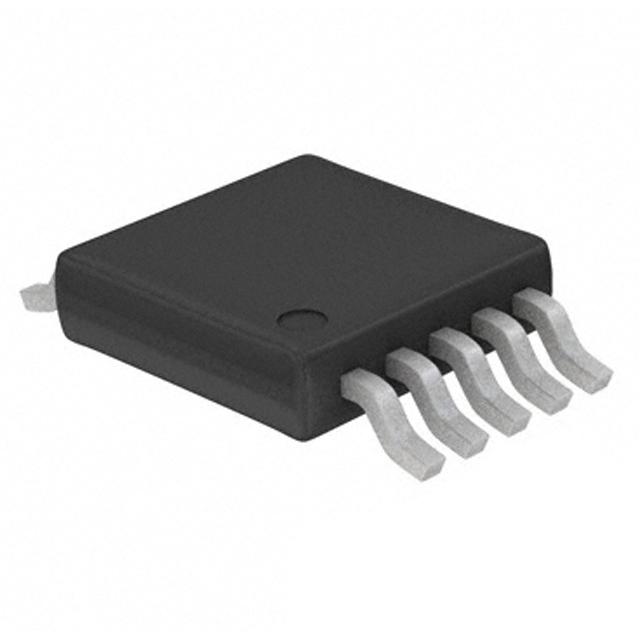

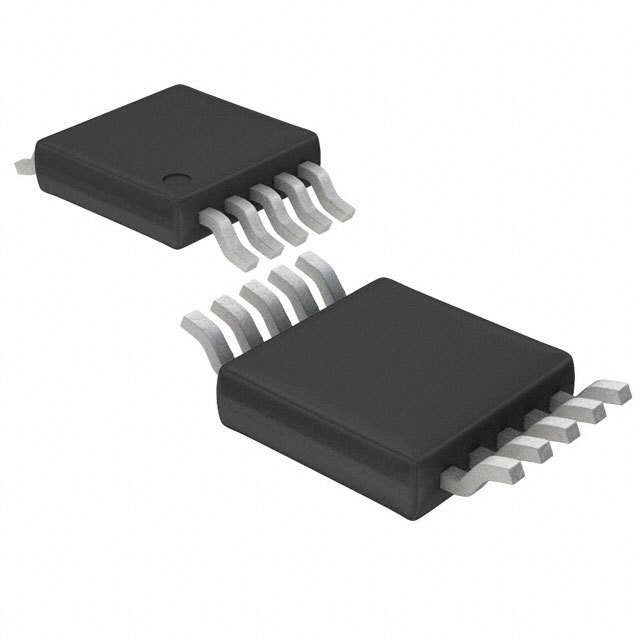

LINEAR TECHNOLOGY LT6550IMS#PBF 视频放大器, 3 放大器, 110 MHz, 340 V/µs, -40 °C, 85 °C
Optimize your circuit with this voltage feedback amplifier OP amp from by adding functionalities such as amplifying voltages and performing basic mathematical operations. Its typical dual supply voltage is ±3|±5 V, with a minimum of ±1.5 V and maximum of ±6.3 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 3 channels per chip. This device is made with bipolar technology. This device uses one or two power supplies.
供电电流 8.5 mA
电路数 3
通道数 3
针脚数 10
静态电流 8.50 µA
转换速率 340 V/μs
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 90 MHz
增益带宽 110 MHz
电源电压 3V ~ 12.6V
安装方式 Surface Mount
引脚数 10
封装 MSOP-10
高度 0.86 mm
封装 MSOP-10
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 电压反馈
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LT6550IMS#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT6550IMS#TRPBF 凌力尔特 | 完全替代 | LT6550IMS#PBF和LT6550IMS#TRPBF的区别 |
LT6550CMS#TR 凌力尔特 | 完全替代 | LT6550IMS#PBF和LT6550CMS#TR的区别 |
LT6550CMS#PBF 凌力尔特 | 类似代替 | LT6550IMS#PBF和LT6550CMS#PBF的区别 |
