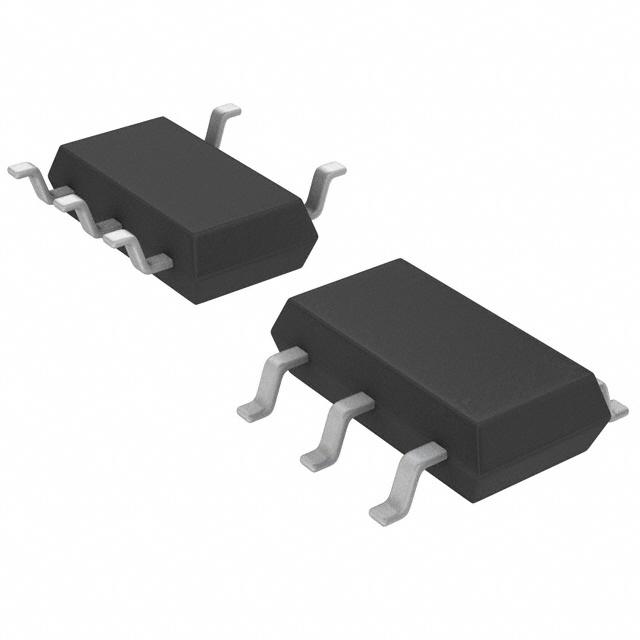

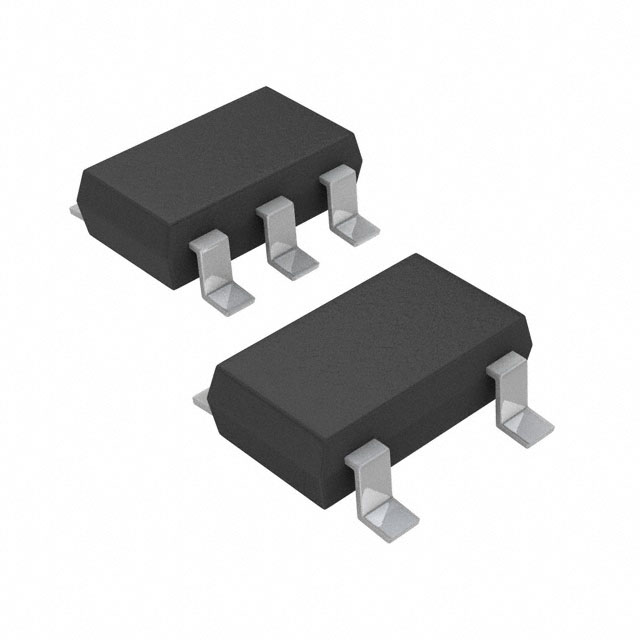

LINEAR TECHNOLOGY LTC1663-1CS5#TRMPBF Digital to Analogue Converter, 10Bit, Serial, 2.7V to 5.5V, TSOT-23, 5Pins
With this DAC converter from converting analog signals into digital is easy. It has a voltage output. This device"s digital interface is serial 2-wire. This DAC has a resolution of 10bit. This DAC has a minimum operating temperature of 0 °C and a maximum of 70 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device uses a single power supply.
供电电流 75.0 µA
位数 10
耗散功率 0.625 mW
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 0.625 mW
数模转换数DAC 1
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LTC1663-1CS5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC1663-1CS5#TRPBF 凌力尔特 | 完全替代 | LTC1663-1CS5#TRMPBF和LTC1663-1CS5#TRPBF的区别 |
LTC1663-1CS5#TRM 亚德诺 | 功能相似 | LTC1663-1CS5#TRMPBF和LTC1663-1CS5#TRM的区别 |
