LT8301ES5#TRMPBF

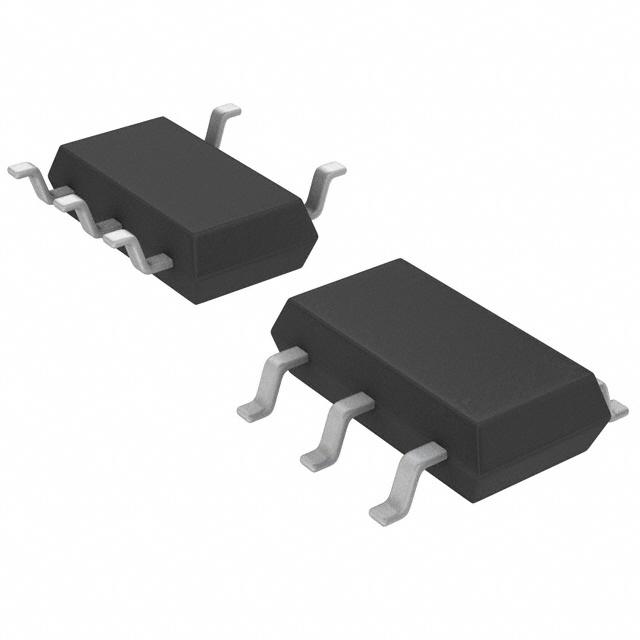

LINEAR TECHNOLOGY  LT8301ES5#TRMPBF  直流-直流开关反激稳压器, 可调, 2.7V-42V输入, 1.2A输出, 10kHz, TSOT-23-5

The is a micropower isolated Flyback Converter with 65V/1.2A switch. By sampling the isolated output voltage directly from the primary-side flyback waveform, the part requires no third winding or opto-isolator for regulation. The output voltage is programmed with a single external resistor. Internal compensation and soft-start further reduce external component count. Boundary mode operation provides a small magnetic solution with excellent load regulation. Low ripple burst mode operation maintains high efficiency at light load while minimizing the output voltage ripple. A 1.2A, 65V DMOS power switch is integrated along with all high voltage circuitry and control logic. It operates from an input voltage range of 2.7 to 42V and can deliver up to 6W of isolated output power. The high level of integration and the use of boundary and low ripple burst modes result in a simple to use, low component count and high efficiency application solution for isolated power delivery.

.

1.2A, 65V Internal DMOS power switch

.

Low quiescent current 100µA in sleep mode and 350µA in active mode

.

Boundary mode operation at heavy load

.

Low-ripple Burst Mode® operation at light load

.

Minimum load <0.5% typical of full output

.

VOUT set with a single external resistor

.

No transformer third winding or opto-isolator required for regulation

.

Accurate EN/UVLO threshold and hysteresis

.

Internal compensation and soft-start

.

Output short-circuit protection
