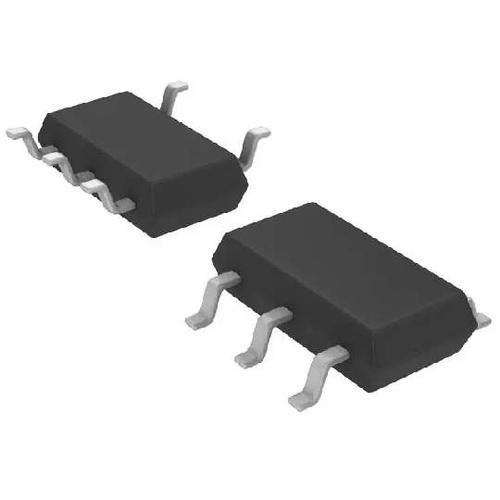

LINEAR TECHNOLOGY LT3468ES5#TRMPBF 芯片, 闪光灯电容充电器, TSOT23-5
The is a highly integrated Photoflash Capacitor Charger IC designed to charge photoflash capacitors in digital and film cameras. A patented control technique allows for the use of extremely small transformers. Each device contains an on-chip high voltage NPN power switch. Output voltage detection is completely contained within the device, eliminating the need for any discrete Zener diodes or resistors. The output voltage can be adjusted by simply changing the turn ratio of the transformer. The LT3468 has a primary current limit of 1.4A. Aside from the differing current limit, the device is otherwise equivalent. The CHARGE pin gives full control of the part to the user. Driving CHARGE low puts the part in shutdown. The DONE pin indicates when the part has completed charging.
输出接口数 1
输入电压DC 16.0V max
输出电流 1.3 A
供电电流 5 mA
针脚数 5
输入电压Max 16 V
输入电压Min 2.5 V
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 16V
安装方式 Surface Mount
引脚数 5
封装 TSOT-23-5
封装 TSOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 照相机闪光灯电容器充电器, Consumer Electronics, 工业, 消费电子产品, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT3468ES5#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT3468ES5#TRPBF 凌力尔特 | 完全替代 | LT3468ES5#TRMPBF和LT3468ES5#TRPBF的区别 |
