LINEAR TECHNOLOGY LT1965IDD-3.3#PBF 固定电压稳压器, LDO, 1.8V至20V, 310mV压差, 3.3V输出, 1.1A输出, DFN-8
The is a 3.3V fixed output low noise low-dropout LDO Linear Regulator. The devices supply 1.1A of output current with a 310mV typical dropout voltage. Operating quiescent current is 600µA, reducing to <1µA in shutdown. Quiescent current is well controlled, it does not rise in dropout as with many other regulators. The device have very low output noise which makes them ideal for sensitive RF and DSP supply applications. The device is stable with output capacitors as low as 10µF. Internal protection circuitry includes reverse-battery protection, current limiting with foldback, thermal limiting and reverse-current protection.
输出接口数 1
输出电压 3.3 V
输出电流 1.1 A
供电电流 1.1mA ~ 40mA
针脚数 8
跌落电压 310 mV
输入电压Max 20 V
输入电压Min 1.8 V
输出电压Min 3.3 V
输出电流Max 1.1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤20 V
安装方式 Surface Mount
引脚数 8

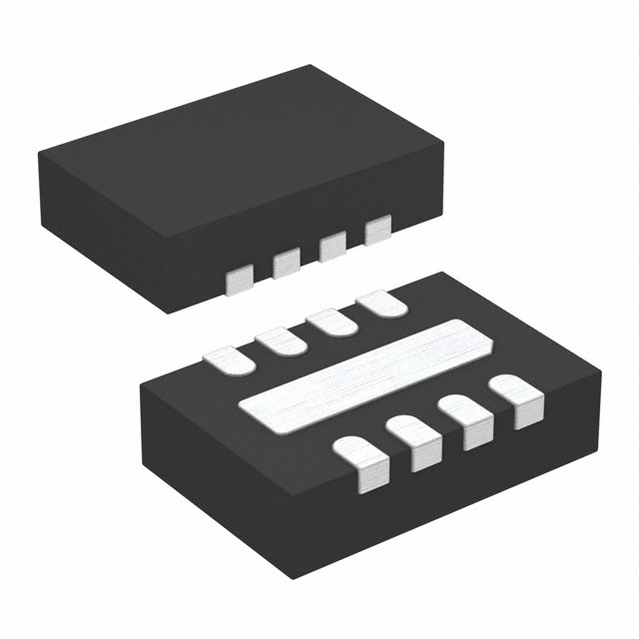

封装 DFN-8
高度 0.75 mm
封装 DFN-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Each
制造应用 Industrial, Sensing & Instrumentation, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT1965IDD-3.3#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT1965IDD-3.3#TRPBF 凌力尔特 | 完全替代 | LT1965IDD-3.3#PBF和LT1965IDD-3.3#TRPBF的区别 |
