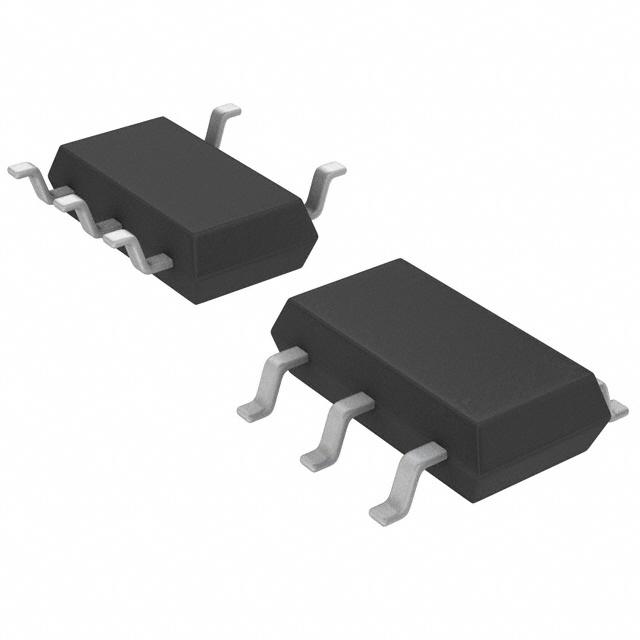

LT1783HS5#TRMPBF

LINEAR TECHNOLOGY  LT1783HS5#TRMPBF  运算放大器, 单路, 1.3 MHz, 1个放大器, 0.45 V/µs, ± 1.5V 至 ± 9V, TSOT-23, 5 引脚

The is an Operational Amplifier draws less than 300µA of quiescent current and has reverse-battery protection, drawing negligible current for reverse supply voltages up to 18V. The input range of the LT1783 includes ground and unique feature of this device is its Over-The-Top® operation capability with either or both of its inputs above the positive rail. The inputs handle 18V both differential and common mode, independent of supply voltage. The input stage incorporates phase reversal protection to prevent false outputs from occurring even when the inputs are 9V below the negative supply. The LT1783 can drive loads up to 18mA and still maintain rail-to-rail capability. A shutdown feature on the 6-lead version can disable the part, making the output high impedance and reducing quiescent current to 5µA.

.

Operates with inputs above V+

.

Rail-to-rail input and output

.

800µV Maximum low input offset voltage

.

0 to 18V Single supply input range

.

18mA Minimum high output current

.

Specified on 3, 5 and ±5V supplies

.

Output shutdown on 6-lead version

.

Reverse-battery protection to 18V

.

1500V/mV High voltage gain
