LT1353CS#PBF

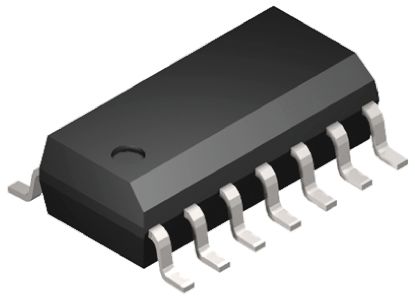

LINEAR TECHNOLOGY  LT1353CS#PBF  运算放大器, 四路, 3 MHz, 4个放大器, 200 V/µs, ± 2.5V 至 ± 15V, SOIC, 14 引脚

The is a quad very low power high speed Operational Amplifier with outstanding AC and DC performance. The amplifier feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit combines the slewing performance of a current feedback amplifier in a true operational amplifier with matched high impedance inputs. The high slew rate ensures that the large-signal bandwidth is not degraded. Each output is capable of driving a 1kW load to ±13V with ±15V supplies and a 500W load to ±3.4 on ±5V supplies.

.

C-Load™ op amp drives all capacitive loads

.

600mV Maximum input offset voltage

.

50nA Maximum input bias current

.

15nA Maximum input offset current

.

14nV/√Hz Input noise voltage
