LT2079AIS#PBF

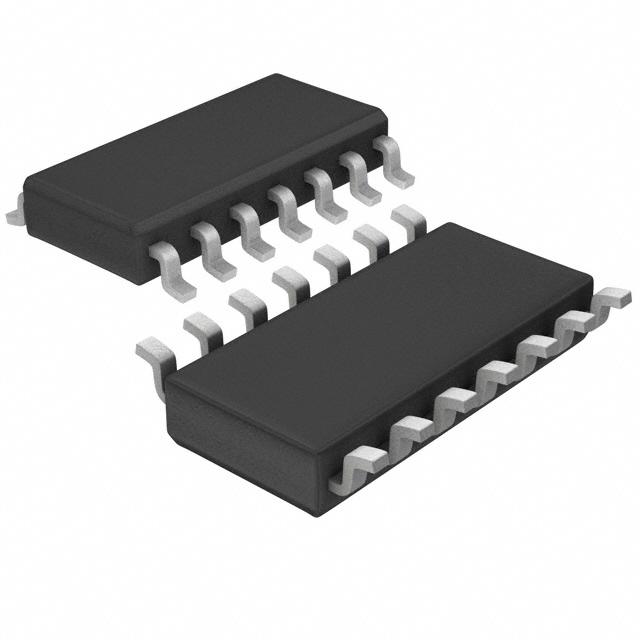

LINEAR TECHNOLOGY  LT2079AIS#PBF  运算放大器, 四路, 200 kHz, 4个放大器, 0.07 V/µs, 2V 至 44V, SOIC, 14 引脚

The is a micropower dual Operational Amplifier optimized for single supply operation at 5V. ±15V specifications are also provided. Micropower performance of competing devices is achieved at the expense of seriously degrading precision, noise, speed and output drive specifications. The design effort of the LT2079 was concentrated on reducing supply current without sacrificing other parameters. The offset voltage achieved is the lowest on any dual or quad non-chopper stabilized op amp-micropower or otherwise. Offset current, voltage and current noise, slew rate and gain bandwidth product are all two to ten times better than on previous micropower op amps.

.

50µA Supply current per amplifier maximum

.

70µV Maximum offset voltage

.

250pA Maximum offset current

.

0.6mVP-P, 0.1Hz to 10Hz Voltage noise

.

3pAP-P, 0.1Hz to 10Hz Current noise

.

0.4mV/°C Offset voltage drift
