LR8 可调线性电压调节器### 线性电压调节器,Microchip
LR8 可调线性稳压器
### 线性电压调节器,
得捷:
IC REG LIN POS ADJ 10MA TO243AA
欧时:

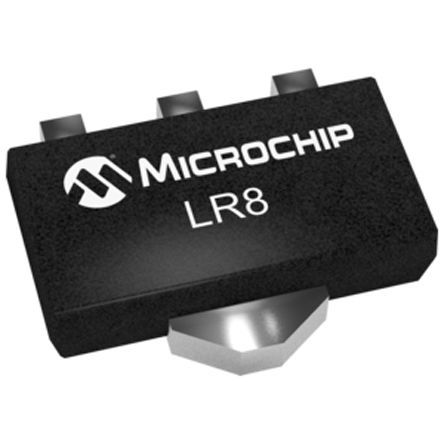

Microchip LR8 系列 LR8N8-G 线性稳压器, 13.2 → 450 V输入, 1.2 → 440 V输出, ±5%精确度 可调
立创商城:
正 Vin=450V Vout=1.2V~438V 10mA 60dB@120Hz
贸泽:
Linear Voltage Regulators Hi In V Adj 3 Termnl
e络盟:
芯片, 线性稳压器, 0.02A, 440V, TO-243AA-3
艾睿:
Use the standard LR8N8-G linear regulator from Microchip Technology to maintain a constant output voltage. It has an overall accuracy of ±5 %. This device has a maximum power dissipation of 1600 mW. This voltage regulation device&s;s single output can produce a current up to 0.01 A. By only needing an input voltage of 13.2 V with a maximum of 450 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.2 to 440 V, this is power management at its best. At a load regulation of 3% and line regulation of 0.01%/V a constant current can be produced at the output of your circuit. Its maximum power dissipation is 1600 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
Allied Electronics:
HIGH VOLTAGE ADJUSTABLE 3-TERMINAL LINEAR REGULAR, 450V3 SOT-89 T/R
安富利:
Standard Regulator Pos 1.2V to 440V 0.01A 4-Pin3+Tab SOT-89 T/R
Chip1Stop:
High Input Voltage,Adjustable 3-Terminal Linear Regulator
TME:

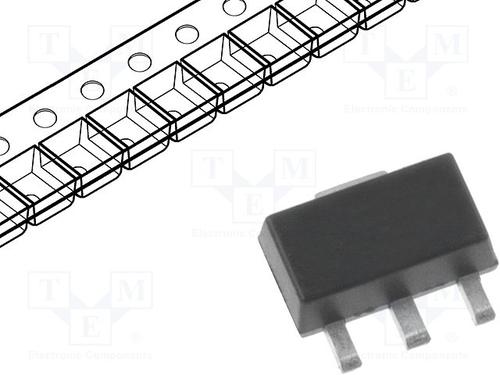

Voltage regulator; adjustable; 1.2÷440V; 10mA; SOT89-3; SMD
Verical:
Standard Regulator Pos 1.2V to 440V 0.01A 4-Pin3+Tab SOT-89 T/R
Newark:
# MICROCHIP LR8N8-G Linear Voltage Regulator, Adjustable, 13.2V to 450V input, 1.2V to 440V/20 mA out, TO-243AA-3
儒卓力:
**VREG HIGH INPUT ADJ SOT-89 **
Win Source:
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 440 V TO-243AA SOT-89
工作电压 15V ~ 450V
输出接口数 1
输出电压 1.2V ~ 440V
输出电流 20 mA
针脚数 3
耗散功率 1600 mW
输入电压Max 450 V
输入电压Min 13.2 V
输出电压Max 440 V
输出电压Min 1.2 V
输出电流Max 0.01 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1600 mW
精度 ±5 %
输入电压 13.2V ~ 450V
安装方式 Surface Mount
引脚数 3

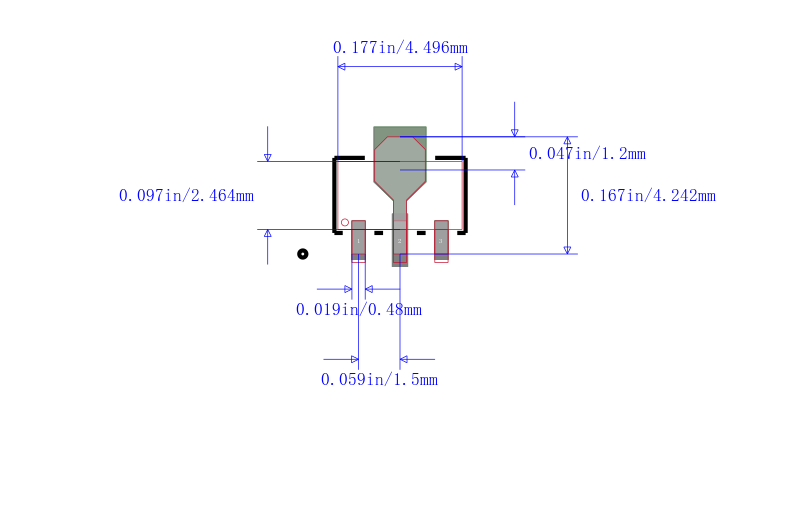

封装 TO-243
长度 4.6 mm
宽度 2.6 mm
高度 1.6 mm
封装 TO-243
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 Power Management, 工业, Industrial, 电机驱动与控制, 电源管理, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LR8N8-G Microchip 微芯 | 当前型号 | 当前型号 |
LR8N3-G 微芯 | 类似代替 | LR8N8-G和LR8N3-G的区别 |
LR8N8 微芯 | 功能相似 | LR8N8-G和LR8N8的区别 |
