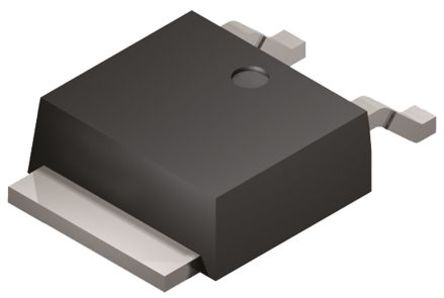

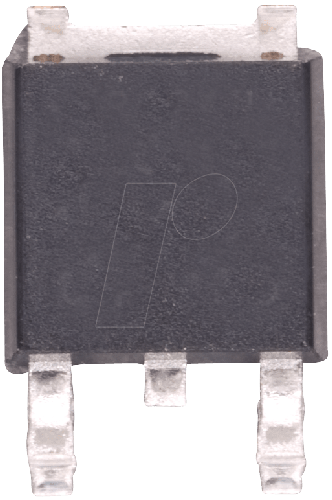

MICROCHIP LR12K4-G 芯片, 线性稳压器, 0.1A, 1.2V-88V, TO-252AA
PMIC - 稳压器 - 线性 正 可调式 1 输出 50mA TO-252-3
得捷:
IC REG LIN POS ADJ 50MA TO252-3
立创商城:
LR12K4-G
欧时:
### LR12 可调线性稳压器### 线性电压调节器,Microchip
贸泽:
Linear Voltage Regulators 100V 50mA Adj 3-Term
e络盟:
LINEAR VOLTAGE REGULATOR, 0.1A, 1.2-88V,
艾睿:
This standard LR12K4-G linear regulator from Microchip Technology acts like a variable resistor to maintain a steady voltage level. This device has a maximum power dissipation of 2000 mW. It has an overall accuracy of ±5 %. This voltage regulation device&s;s single output can produce a current up to 0.0005Min A. It only needs a voltage of at least 13.2 V while not exceeding 100 V to effectively power your circuit. With an adjustable output that has a voltage of 1.2 to 88 V, this is power management at its best. Using a load regulation of 3% and line regulation of 0.03%/V is needed for a programmable DC power supply. Its maximum power dissipation is 2000 mW. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
Allied Electronics:
HIGH INPUT VOLTAGE ADJUSTABLE 3-TERMINAL LINEAR REGULATOR3 DPAK T/R
安富利:
Standard Regulator Pos 1.2V to 88V 0.1A 3-Pin DPAK
富昌:
HIGH INPUT VOLTAGE ADJUSTABLE 3-TERMINAL LINEAR REGULATOR
Chip1Stop:
Standard Regulator Pos 1.2V to 88V 0.0005A 3-Pin2+Tab TO-252 T/R
TME:

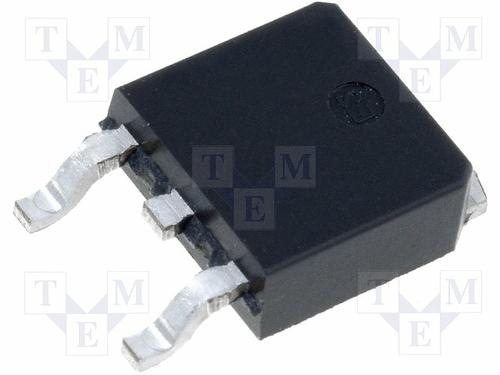

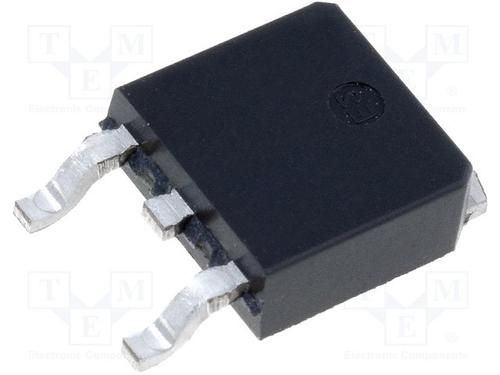

Voltage regulator; adjustable; 1.2÷88V; 50mA; TO252; SMD; -40÷85°C
Verical:
Standard Regulator Pos 1.2V to 88V 0.0005A Automotive 3-Pin2+Tab TO-252 T/R
Newark:
# MICROCHIP LR12K4-G Linear Voltage Regulator, Adjustable, 13.2V to 100V input, 1.2V to 88V/100 mA out, TO-252AA-3
工作电压 13.2V ~ 100V
输出接口数 1
输出电压 1.2V ~ 88V
输出电流 100 mA
针脚数 3
耗散功率 2000 mW
输入电压Max 100 V
输入电压Min 13.2 V
输出电压Max 88 V
输出电压Min 1.2 V
输出电流Max 100 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 2000 mW
精度 ±5 %
输入电压 13.2V ~ 100V
安装方式 Surface Mount
引脚数 3

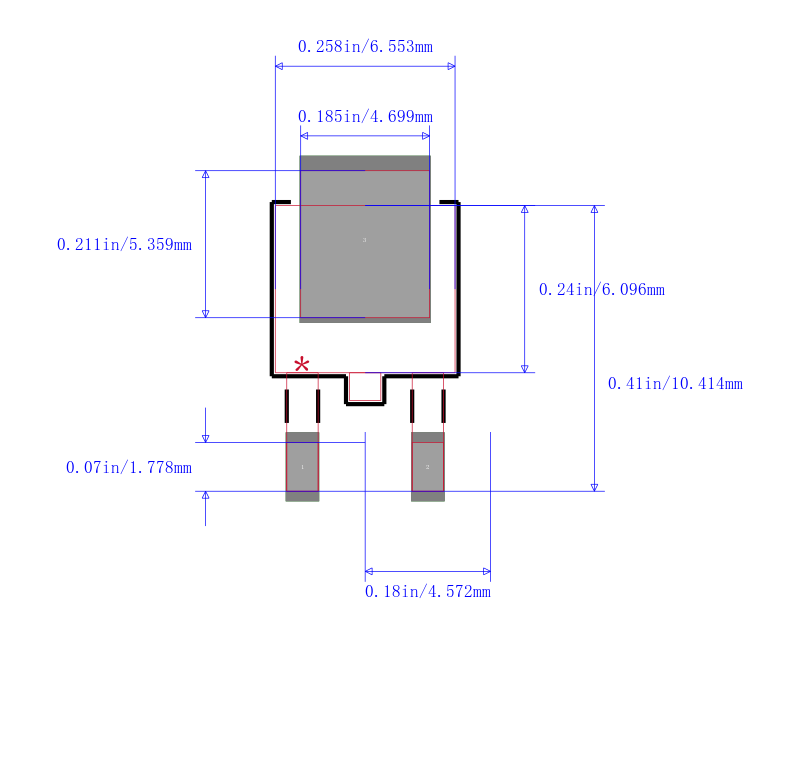

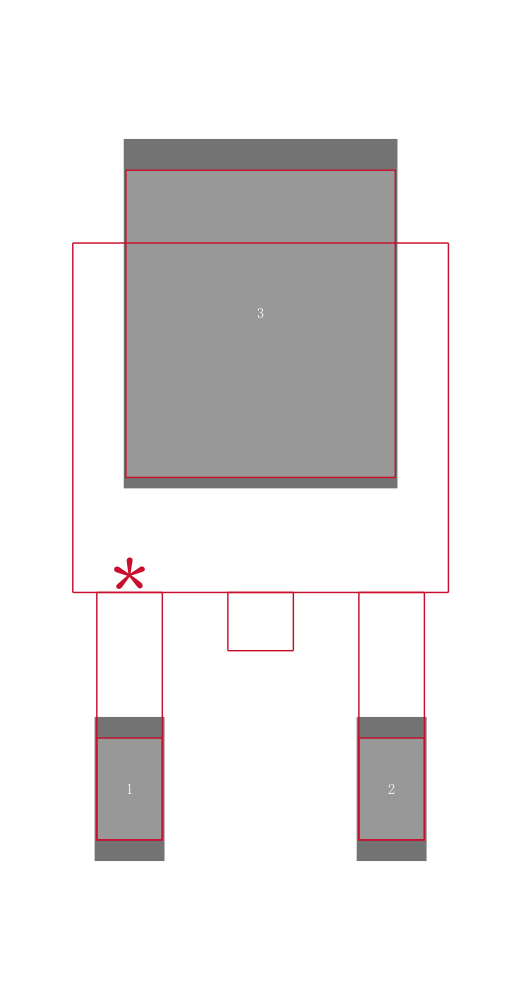

封装 TO-252-3
长度 6.73 mm
宽度 0.245 in
高度 0.094 in
封装 TO-252-3
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LR12K4-G Microchip 微芯 | 当前型号 | 当前型号 |
LR12K4 微芯 | 功能相似 | LR12K4-G和LR12K4的区别 |
