LQW2UAS3R3J00L

MURATA  LQW2UAS3R3J00L  表面贴装高频电感器, LQW2UA系列, 3.3 µH, ± 5%, 1008 [2520 公制], 90 MHz, 3.4 ohm

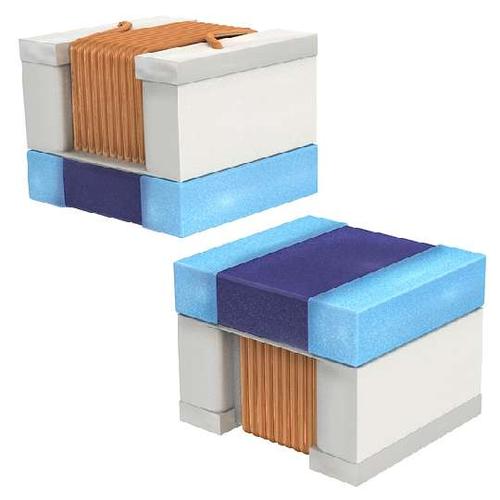

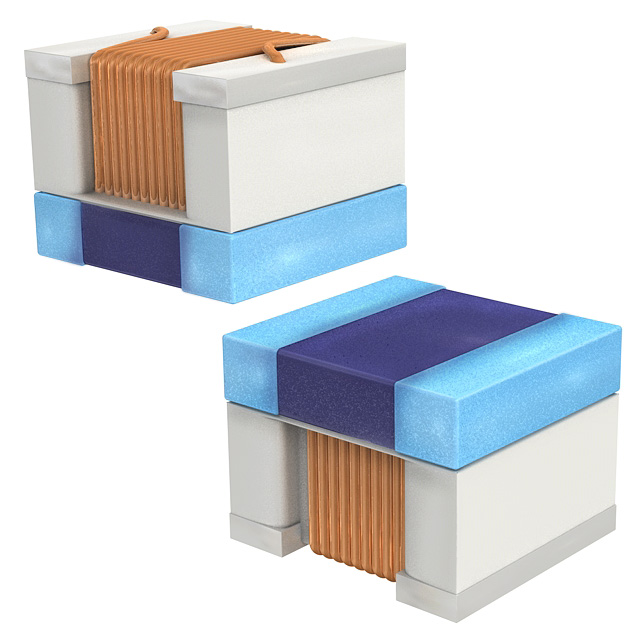

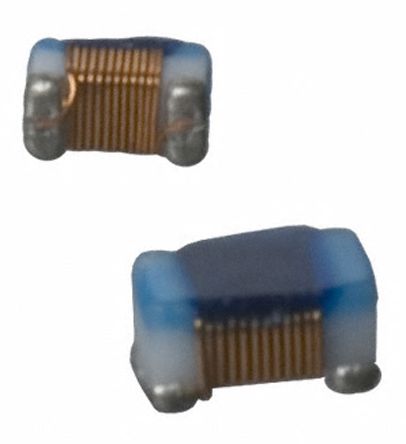

LQW2UAS 系列 SMD 片状器

Murata LQW 系列线绕射频电感器包括一个高 Q 值，为过滤器通频带内部提供极佳衰减特性。 这些 LQW 电感器用于匹配天线应用，以便保持天线接收和传输灵敏度。 LQW 具有低直流电阻特性，可部署在具有高电流级别流的扼流电路中。

### 特点

提供两种类型的结构，用于不同的应用

高 Q 值

可支持大电流

低直流电阻抗

得捷:
FIXED IND 3.3UH 290MA 3.4OHM SMD

立创商城:
3.3uH ±5% 290mA

欧时:
Murata LQW2UAS_00 系列 非磁核心芯材 3.3 μH 绕线贴片电感器 LQW2UAS3R3J00L, ±5%容差, 290mA Idc Q:22

e络盟:
MURATA  LQW2UAS3R3J00L  表面贴装高频电感器, LQW2UA系列, 3.3 µH, ± 5%, 1008 [2520 公制], 90 MHz, 3.4 ohm

艾睿:
An ideal space-saving electronic component is this rf chip LQW2UAS3R3J00L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device utilizes wirewound technology. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 90M Hz. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 290m A with a maximum resistance of 3.4 Ohm. It has an inductance of 3.3u H.

安富利:
Ind RF Chip Wirewound 3.3uH 5% 7.9MHz 22Q-Factor 290mA 1008 Embossed T/R

Chip1Stop:
Ind RF Chip Wirewound 3.3uH 5% 7.9MHz 22Q-Factor 290mA 1008 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 3.3uH 5% 7.9MHz 22Q-Factor Non Magnetic 0.29A 3.4Ohm DCR 1008 T/R
