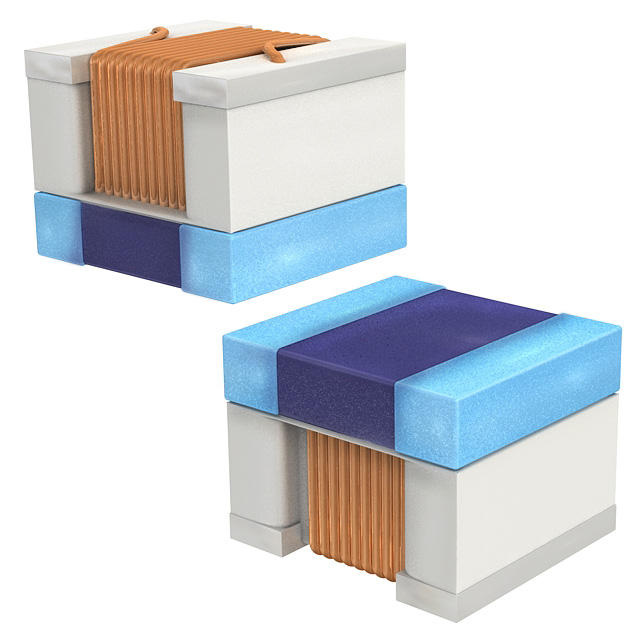

LQW2UAS68NJ00L

68nH ±5%

68 nH 无屏蔽 绕线 器 1 A 200 毫欧最大 1008（2520 公制）

立创商城:
68nH ±5% 200mΩ

得捷:
FIXED IND 68NH 1A 200 MOHM SMD

e络盟:
The LQW series from Murata are wire wound inductors used for general purpose applications. These inductors with high Q values are mainly used in matching circuits of RF units for excellent attenuation characteristics in band pass filters. They are also used in the matching applications of antennas for maintaining transmission and reception sensitivity. Innovative coil and case structures provide low Rdc characteristics.

艾睿:
An ideal space-saving electronic component is this rf chip LQW2UAS68NJ00L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 50M Hz, while its minimum self-resonant frequency is 1.3G Hz. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 200m Ohm. It has a tolerance of 5%. It has an inductance of 68n H. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep. This device is made with wirewound technology.

安富利:
Ind RF Chip Wirewound 68nH 5% 50MHz 65Q-Factor 1A 1008 Embossed T/R

Chip1Stop:
Ind RF Chip Wirewound 68nH 5% 50MHz 65Q-Factor 1A 1008 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.068uH 5% 50MHz 65Q-Factor Non Magnetic 1A 0.2Ohm DCR 1008 T/R
