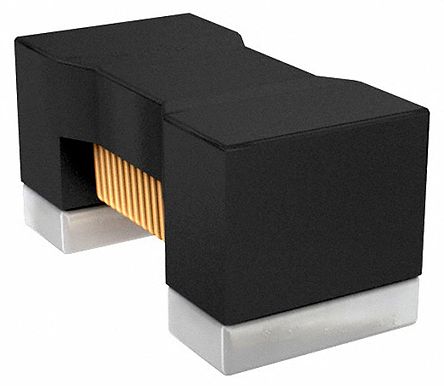

MURATA LQW18AN24NJ00D 表面贴装高频电感器, LQW18AN系列, 24 nH, ± 5%, 0603 [1608 公制], 3.8 GHz, 0.21 ohm
固定器
得捷:
FIXED IND 24NH 500MA 210MOHM SMD
立创商城:
24nH ±5% 210mΩ
欧时:
Murata LQW18A 系列 铁氧体芯材 24 nH 绕线贴片电感器 LQW18AN24NJ00D, ±5%容差, 500mA Idc Q:40
艾睿:
Save valuable space on a PCB with this rf chip LQW18AN24NJ00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 3.8G Hz. This device is made with wirewound technology. It has an inductance of 24n H. This product is 1.8 mm long, 1 mm tall and 1 mm deep. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 210m Ohm.
安富利:
Ind RF Chip Wirewound 24nH 5% 100MHz 40Q-Factor 500mA 0603 Paper T/R
Chip1Stop:
Inductor RF Chip Unshielded Wirewound 24nH 5% 100MHz 40Q-Factor Ceramic 500mA 210mOhm DCR 0603 T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.024uH 5% 100MHz 40Q-Factor Non Magnetic 0.5A 0.21Ohm DCR 0603 T/R
Newark:
# MURATA LQW18AN24NJ00D Surface Mount High Frequency Inductor, LQW18AN Series, 24 nH, 5%, 0603 [1608 Metric], 3.8 GHz
儒卓力:
**LQW18AN 24nH 500mA 5% WWT **
额定电流 500 mA
容差 ±5 %
电感 24 nH
自谐频率 3.8 GHz
产品系列 LQW
电感公差 ±5 %
测试频率 100 MHz
电阻DC) ≤210 mΩ
额定电流DC 500 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.21 Ω
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
重量 0.003 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 Industrial, 工业, Power Management, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
