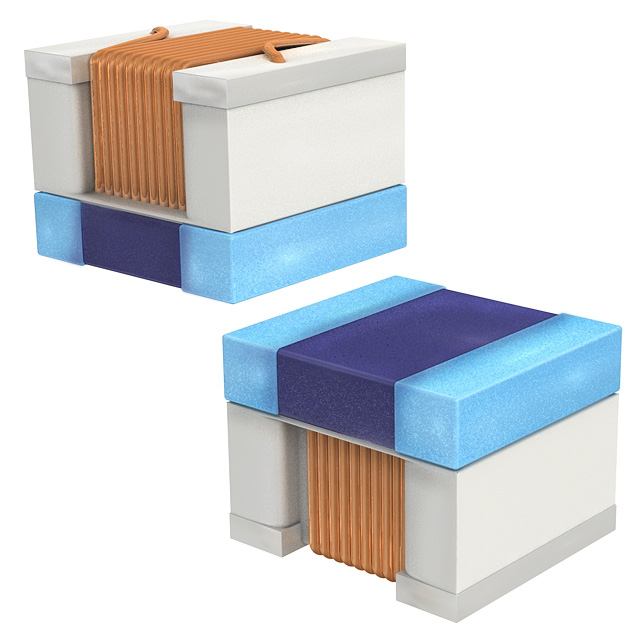

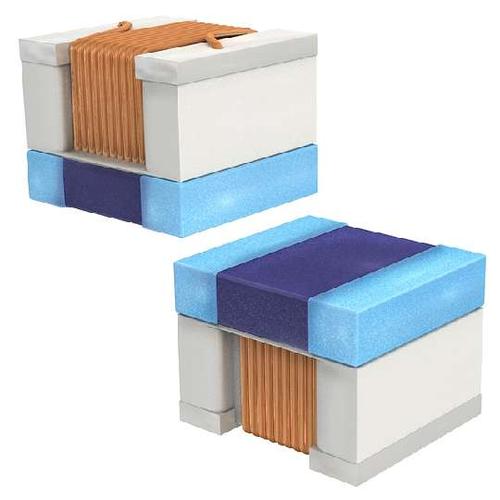

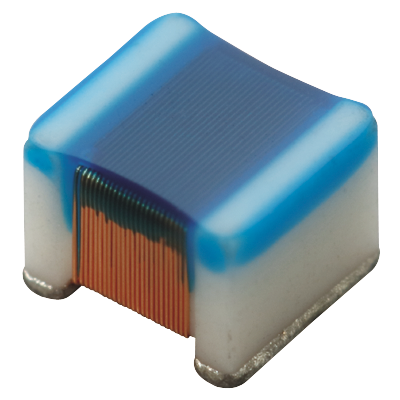

LQW2UAS1R2J00L

MURATA  LQW2UAS1R2J00L  表面贴装高频电感器, LQW2UA系列, 1.2 µH, ± 5%, 1008 [2520 公制], 210 MHz, 2 ohm

1.2 µH 无屏蔽 绕线 器 310 mA 2 欧姆最大 1008（2520 公制）

得捷:
FIXED IND 1.2UH 310MA 2 OHM SMD

e络盟:
MURATA  LQW2UAS1R2J00L  表面贴装高频电感器, LQW2UA系列, 1.2 µH, ± 5%, 1008 [2520 公制], 210 MHz, 2 ohm

艾睿:
Make any circuit look clean and compact using this rf chip LQW2UAS1R2J00L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep. Its test frequency is 7.9M Hz, while its minimum self-resonant frequency is 210M Hz. It has an inductance of 1.2u H. This SMD inductor has a maximum DC current of 310m A with a maximum resistance of 2 Ohm. It has a tolerance of 5%. This device utilizes wirewound technology.

安富利:
Ind RF Chip Wirewound 1.2uH 5% 7.9MHz 35Q-Factor 310mA 1008 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 1.2uH 5% 7.9MHz 35Q-Factor 310mA 2Ohm DCR 1008 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 1.2uH 5% 7.9MHz 35Q-Factor Non Magnetic 0.31A 2Ohm DCR 1008 T/R
