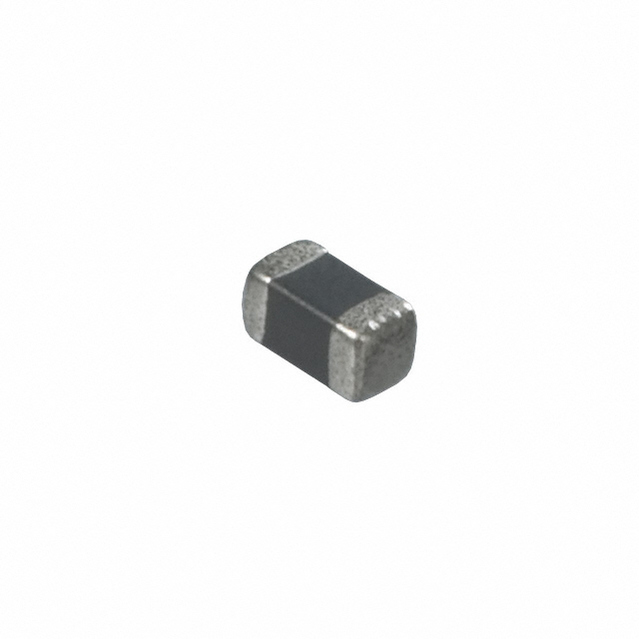

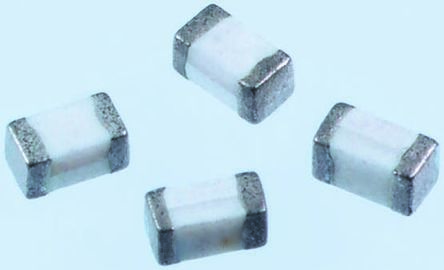

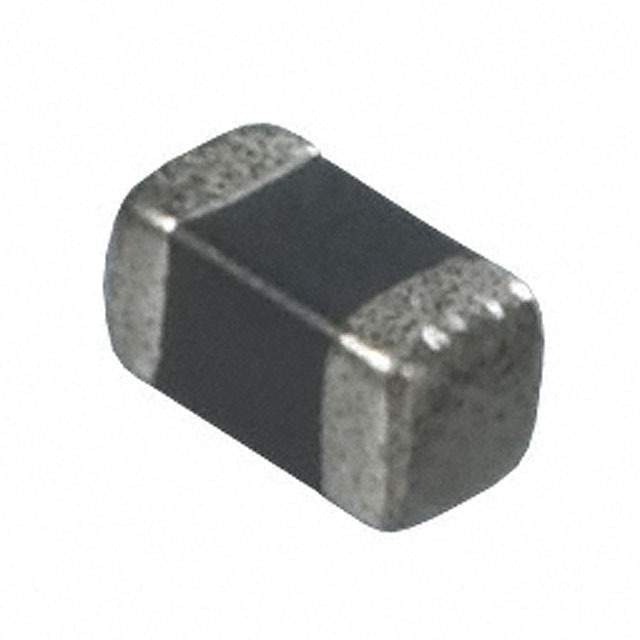

MURATA LQM18NNR22K00D 表面贴装高频电感器, LQM18N系列, 220 nH, ± 10%, 0603 [1608 公制], 150 MHz, 0.8 ohm
Murata 0603 LQQ18N 系列高频片式器
单片式电感器,带铁氧体磁芯,具有屏蔽网,可保护其不受外围元件干扰。
**应用:**谐振和过滤以及自冲击电路,用于电信设备。
立创商城:
220nH ±10% 800mΩ
欧时:
Murata LQM18N 系列 屏蔽 220 nH 绕线贴片电感器 LQM18NNR22K00D, ±10%容差, 50mA Idc Q:15
得捷:
FIXED IND 220NH 50MA 800MOHM SMD
e络盟:
MURATA LQM18NNR22K00D 表面贴装高频电感器, LQM18N系列, 220 nH, ± 10%, 0603 [1608 公制], 150 MHz, 0.8 ohm
艾睿:
This general purpose chip LQM18NNR22K00D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 150M Hz. It has a tolerance of 10%. It has an inductance of 220n H. This SMD inductor has a maximum DC current of 50m A with a maximum resistance of 800m Ohm. This device utilizes multi-layer technology. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep.
安富利:
Ind General Purpose Chip Shielded Multi-Layer 220nH 10% 25MHz 15Q-Factor Ferrite 50mA 0603 Paper T/R
Chip1Stop:
Inductor General Purpose Chip Shielded Multi-Layer 220nH 10% 25MHz 15Q-Factor Ferrite 50mA 800mOhm DCR 0603 T/R
Verical:
Inductor General Purpose Chip Shielded Multi-Layer 0.22uH 10% 25MHz 15Q-Factor Ferrite 0.05A 0.8Ohm DCR 0603 T/R
Win Source:
220nH Shielded Multilayer Inductor 50mA 800 mOhm Max 0603 1608 Metric
额定电流 50 mA
容差 ±10 %
电感 220 nH
自谐频率 150 MHz
Q值 15.0
产品系列 LQM
电阻 800 mΩ
共振频率 150 MHz
屏蔽 Yes
电感公差 ±10 %
测试频率 25 MHz
电阻DC) ≤800 mΩ
额定电流DC 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.8 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQM18NNR22K00D muRata 村田 | 当前型号 | 当前型号 |
LK1608R22K 太诱 | 功能相似 | LQM18NNR22K00D和LK1608R22K的区别 |
