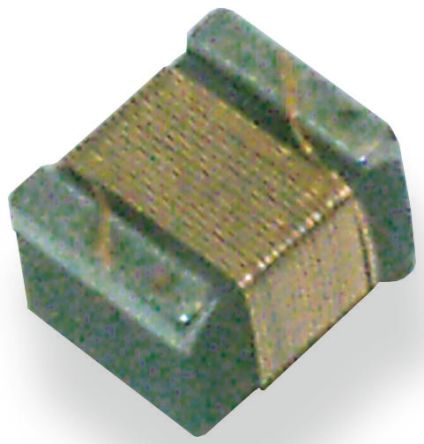

LQW15AN1N5C00D

MURATA  LQW15AN1N5C00D  表面贴装高频电感器, LQW15A_00系列, 1.5 nH, ± 0.2nH, 0402 [1005 公制], 18 GHz, 0.03 ohm

固定器

欧时:
Murata LQW15AN 系列 铁氧体芯材 1.5 nH 绕线贴片电感器 LQW15AN1N5C00D, ±0.2nH容差, 1A Idc Q:10

得捷:
FIXED IND 1.5NH 1A 30 MOHM SMD

立创商城:
1.5nH ±0.2nH 30mΩ

贸泽:
Fixed Inductors 1.5 NH +-.5NH

e络盟:
高频电感器, 1.5 nH, LQW15A_00系列, 1 A, 0402 [1005 公制], 绕线, 0.03 ohm

艾睿:
Make any circuit look clean and compact using this rf chip LQW15AN1N5C00D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 18G Hz. This device utilizes wirewound technology. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 30m Ohm. It has an inductance of 1.5n H.

安富利:
Ind RF Chip Wirewound 1.5nH 0.2nH 100MHz 10Q-Factor 1A 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 1.5nH 0.2nH 100MHz 10Q-Factor 1A 30mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0015uH 0.2nH 100MHz 10Q-Factor Non Magnetic 1A 0.03Ohm DCR 0402 T/R

Newark:
# MURATA  LQW15AN1N5C00D  Surface Mount High Frequency Inductor, LQW15A_00 Series, 1.5 nH, 1 A, 0402 [1005 Metric], Wirewound

儒卓力:
**LQW15A 1,5nH 1000mA 0,2nH WWT **

Win Source:
FIXED IND 1.5NH 1A 30 MOHM SMD
