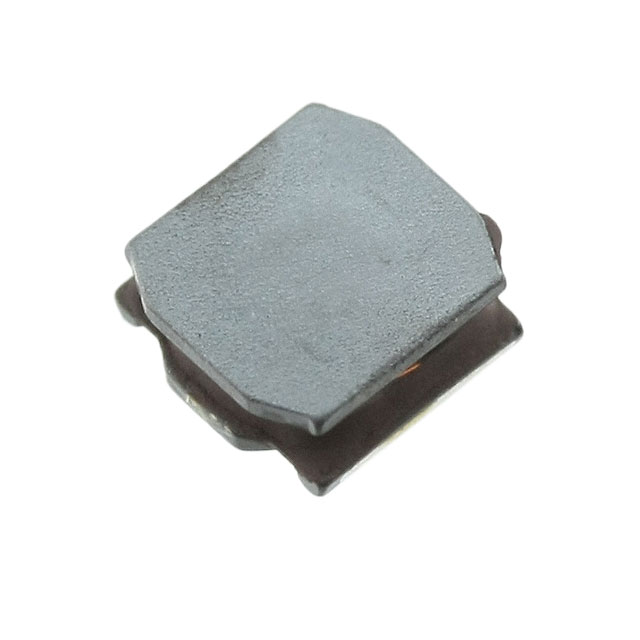

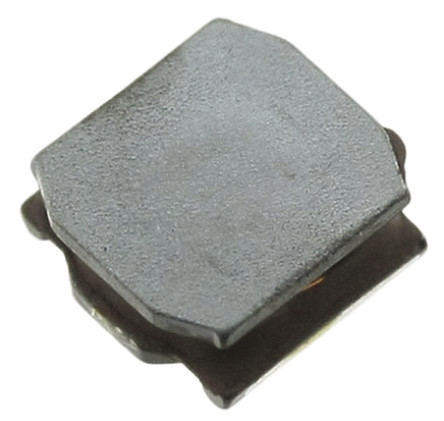

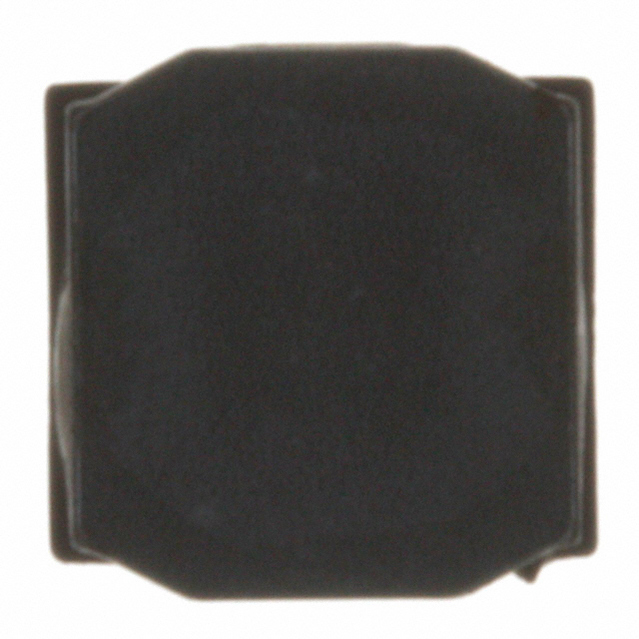

MURATA LQH44PN2R2MP0L 表面贴装高频电感器, LQH44P_P0系列, 2.2 µH, ± 20%, 1515, 70 MHz, 0.049 ohm
固定器
欧时:
Murata LQH44P_P0 系列 屏蔽 2.2 μH 绕线贴片电感器 LQH44PN2R2MP0L, ±20%容差, 2.5A Idc
得捷:
FIXED IND 2.2UH 1.8A 58.8MOHM SM
立创商城:
2.2uH ±20% 1.8A 58.8mΩ
贸泽:
Fixed Inductors 1.8A 2.2uH
艾睿:
Save valuable space on a PCB with this power chip LQH44PN2R2MP0L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 1.8 A with a maximum resistance of 58.8m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 70M Hz. This product is 4.2 mm long, 1.8 mm tall and 4.2 mm deep. This device is made with wirewound technology. It has an inductance of 2.2u H.
安富利:
Ind Power Chip Shielded Wirewound 2.2uH 20% 100KHz Ferrite 1.8A 1515 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Wirewound 2.2uH 20% 1MHz Ferrite 1.8A 58.8mOhm DCR 1515 Embossed T/R
TME:

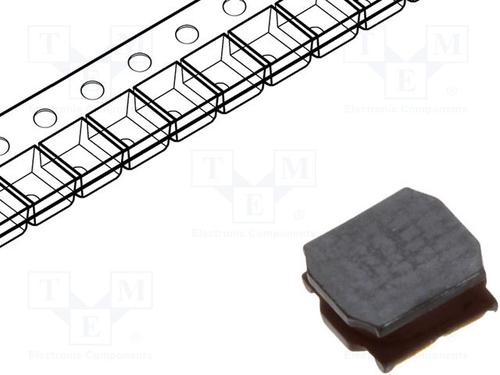

Inductor: wire; SMD; 1515; 2.2uH; 1800mA; 49mΩ; 4x4x1.65mm; ±20%
Verical:
Inductor Power Chip Shielded Wirewound 2.2uH 20% 1MHz Ferrite 1.8A 0.0588Ohm DCR 1515 T/R
Newark:
# MURATA LQH44PN2R2MP0L Surface Mount High Frequency Inductor, LQH44P_P0 Series, 2.2 µH, 2.5 A, 1515, Wirewound, 0.049 ohm
儒卓力:
**LQH44P 2,2uH 1800mA 20% WWT **
Win Source:
2.2μH Shielded Wirewound Inductor 1.8A 58.8 mOhm Max Nonstandard
额定电流 1.8 A
容差 ±20 %
电感 2.2 µH
自谐频率 70 MHz
产品系列 LQH
电阻 49.0 mΩ
共振频率 70.0 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤58.8 mΩ
额定电流DC 2.5 A
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±20 %
电阻DC Max 0.049 Ω
安装方式 Surface Mount
封装 1515
长度 4 mm
宽度 4 mm
高度 1.65 mm
封装 1515
重量 0.07 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
