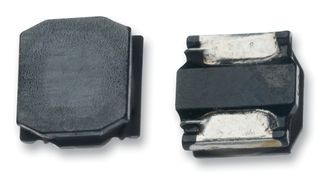

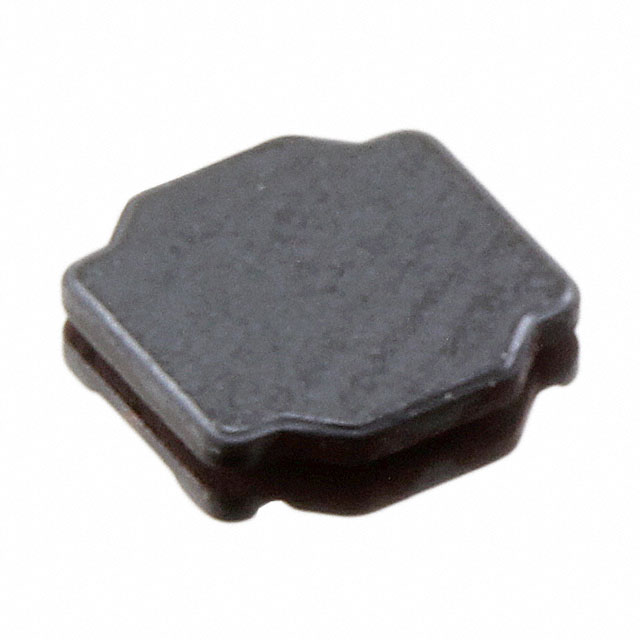

LQH44PN470MJ0L

MURATA  LQH44PN470MJ0L  表面贴装高频电感器, LQH44P_J0系列, 47 µH, ± 20%, 1515, 13 MHz, 1.014 ohm

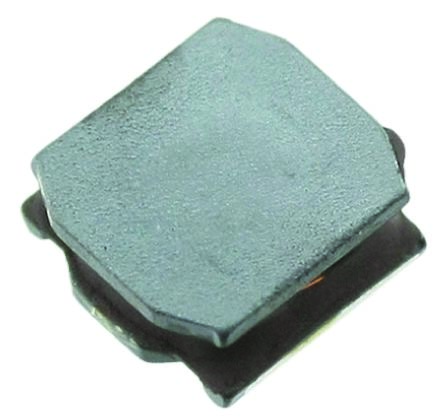

Murata 1515 LQH44P_P0 系列磁性屏蔽线绕扼流圈

LQH44P 系列微型屏蔽器，具有低直流电阻、高电流容量和高阻抗特性。 LQH44P 系列适合在直流电源电路用作电感器或扼流圈。

### SMT 1515 电感器（扼流圈）

欧时:
Murata LQH44P_P0 系列 屏蔽 47 μH 绕线贴片电感器 LQH44PN470MJ0L, ±20%容差, 380mA Idc

立创商城:
47uH ±20% 1.014Ω

得捷:
FIXED IND 47UH 380MA 1.22OHM SMD

贸泽:
Fixed Inductors 0.38A 47uH

e络盟:
高频电感器, 47 µH, LQH44P_J0系列, 300 mA, 1515, 绕线, 1.014 ohm

艾睿:
An ideal space-saving electronic component is this power chip LQH44PN470MJ0L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. Its test frequency is 100K Hz, while its minimum self-resonant frequency is 13M Hz. This SMD inductor has a maximum DC current of 380m A with a maximum resistance of 1.22 Ohm. This device utilizes wirewound technology. This product is 4.2 mm long, 1.2 mm tall and 4.2 mm deep. It has an inductance of 47u H.

安富利:
Ind Power Chip Shielded Wirewound 47uH 20% 100KHz Ferrite 380mA 1515 Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Wirewound 47uH 20% 100KHz Ferrite 380mA 1.22Ohm DCR 1515 Embossed T/R

Verical:
Inductor Power Chip Shielded Wirewound 47uH 20% 100KHz Ferrite 0.38A 1.22Ohm DCR 1515 T/R

Newark:
# MURATA  LQH44PN470MJ0L  Surface Mount High Frequency Inductor, LQH44P_P0 Series, 47 µH, 300 mA, 1515, Wirewound, 1.014 ohm
