LQM21FN100M80L

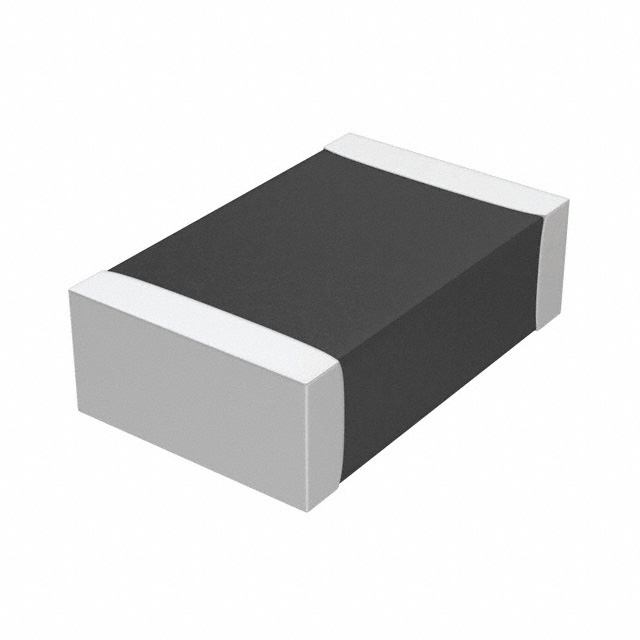

MURATA  LQM21FN100M80L  表面贴装高频电感器, LQM21FN系列, 10 µH, ± 20%, 0805 [2012 公制], 15 MHz, 0.3 ohm

Murata 0805 LQW21F 系列磁性屏蔽多层片式扼流圈

LQM21 系列的磁性屏蔽片式器设计，采用 Murata 的原始多层处理技术和磁性材料。

2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。

欧时:
Murata LQM21F 系列 LQM21FN100M80L 10 μH ±20% 铁氧体 多层贴片式电感器, 0805 2012M封装, SRF: 15MHz

得捷:
FIXED IND 10UH 100MA 390MOHM SMD

立创商城:
10uH ±20% 100mA 390mΩ

艾睿:
Make any circuit look clean and compact using this power chip LQM21FN100M80L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with multi-layer technology. This product is 2.2 mm long, 1.45 mm tall and 1.45 mm deep. It has an inductance of 10u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 15M Hz. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 390m Ohm. It has a tolerance of 20%.

安富利:
Ind Power Chip Shielded Multi-Layer 10uH 20% 1MHz Ferrite 100mA 0805 Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 10uH 20% 1MHz Ferrite 100mA 390mOhm DCR 0805 T/R

Verical:
Inductor Power Chip Shielded Multi-Layer 10uH 20% 1MHz Ferrite 100mA 390mOhm DCR 0805 T/R

Newark:
# MURATA  LQM21FN100M80L  Surface Mount High Frequency Inductor, LQM21FN Series, 10 H, 20%, 0805 [2012 Metric], 15 MHz

儒卓力:
**LQM21FN 10uH 100mA 20% MLT **
