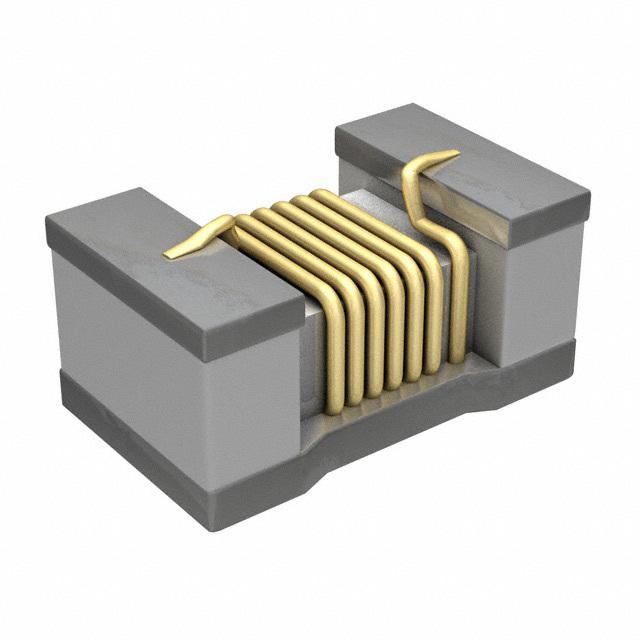

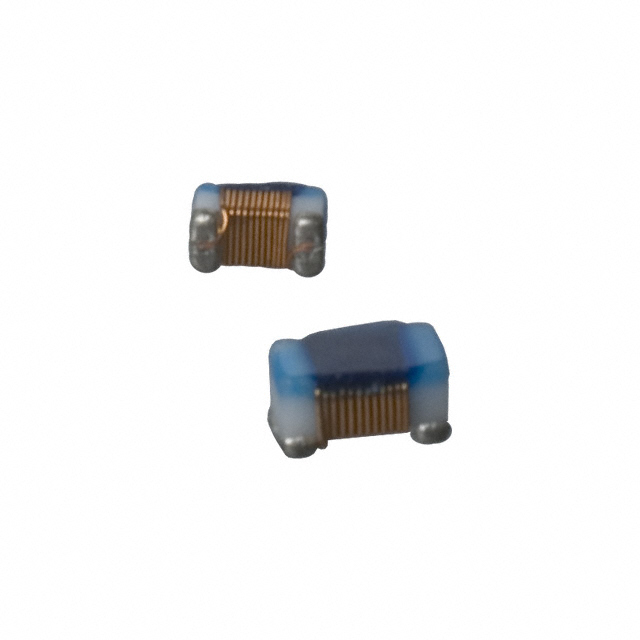

LQW15AN11NJ00D

MURATA  LQW15AN11NJ00D  表面贴装高频电感器, LQW15AN系列, 11 nH, ± 5%, 0402 [1005 公制], 5.5 GHz, 0.14 ohm

固定器

欧时:
Murata LQW15A 系列 铁氧体芯材 11 nH 绕线贴片电感器 LQW15AN11NJ00D, ±5%容差, 500mA Idc Q:30

得捷:
FIXED IND 11NH 500MA 140MOHM SMD

立创商城:
11nH ±5% 140mΩ

e络盟:
高频电感器, 11 nH, LQW15AN系列, 500 mA, 0402 [1005 公制], 非屏蔽, 0.14 ohm

艾睿:
Use this rf chip LQW15AN11NJ00D surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has a tolerance of 5%. It has an inductance of 11n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5.5G Hz. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 140m Ohm. This device utilizes wirewound technology.

安富利:
Ind RF Chip Wirewound 11nH 5% 100MHz 30Q-Factor 500mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Wirewound 11nH 5% 100MHz 30Q-Factor Ceramic 500mA 140mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.011uH 5% 100MHz 30Q-Factor Non Magnetic 0.5A 0.14Ohm DCR 0402 T/R

Newark:
# MURATA  LQW15AN11NJ00D  Surface Mount High Frequency Inductor, LQW15AN Series, 11 nH, 5%, 0402 [1005 Metric], 5.5 GHz

儒卓力:
**LQW15A 11nH 500mA 5% WWT **
