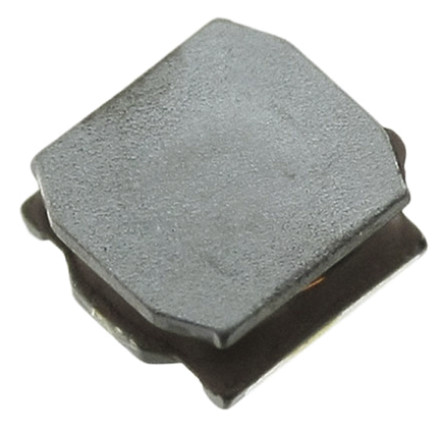

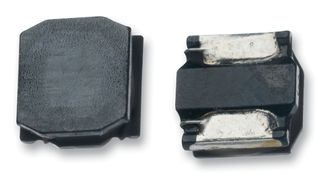

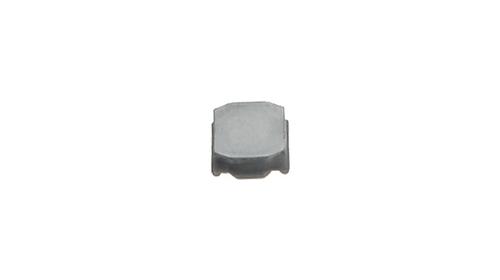

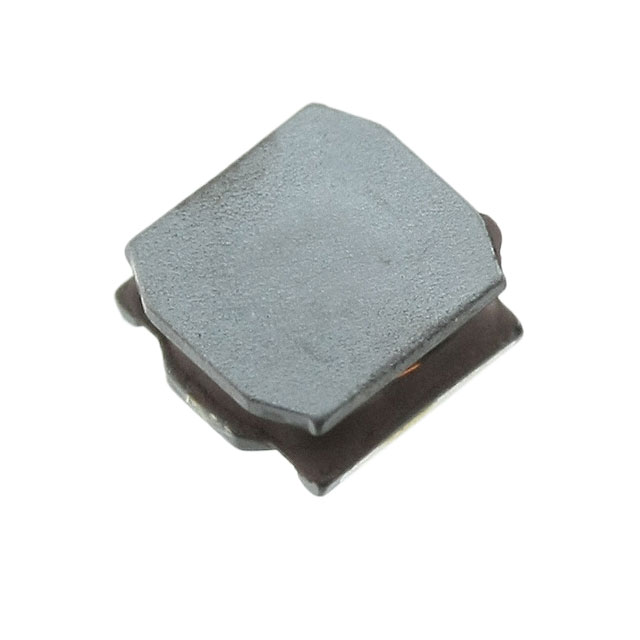

MURATA LQH44PN4R7MP0L 表面贴装高频电感器, LQH44P_P0系列, 4.7 µH, ± 20%, 1515, 40 MHz, 0.08 ohm
固定器
欧时:
Murata LQH44P_P0 系列 屏蔽 4.7 μH 绕线贴片电感器 LQH44PN4R7MP0L, ±20%容差, 1.7A Idc
得捷:
FIXED IND 4.7UH 1.7A 96 MOHM SMD
立创商城:
4.7uH ±20% 1.7A 96mΩ
贸泽:
Fixed Inductors 1.7A 4.7uH
艾睿:
Use this power chip LQH44PN4R7MP0L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 1.7 A with a maximum resistance of 96m Ohm. It has an inductance of 4.7u H. This product is 4.2 mm long, 1.8 mm tall and 4.2 mm deep. It has a tolerance of 20%. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 40M Hz.
安富利:
Ind Power Chip Shielded Wirewound 4.7uH 20% 100KHz Ferrite 1.7A 1515 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.7A 96mOhm DCR 1515 T/R

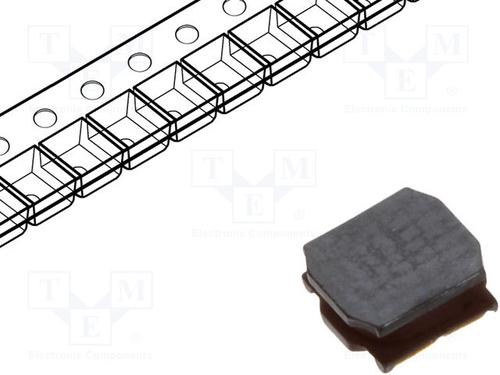

TME:
Inductor: wire; SMD; 1515; 4.7uH; 1700mA; 80mΩ; 4x4x1.65mm; ±20%
Verical:
Inductor Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.7A 0.096Ohm DCR 1515 T/R
Newark:
Surface Mount High Frequency Inductor, LQH44P_P0 Series, 4.7 µH, 1.7 A, 1515, Wirewound, 0.08 ohm
儒卓力:
**LQH44P 4,7uH 1700mA 30% WWT **
Win Source:
4.7μH Shielded Wirewound Inductor 1.7A 96 mOhm Max Nonstandard
额定电流 1.7 A
容差 ±20 %
电感 4.7 µH
自谐频率 40 MHz
产品系列 LQH
电阻 80.0 mΩ
共振频率 40.0 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) ≤96 mΩ
额定电流DC 1.7 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.08 Ω
安装方式 Surface Mount
封装 1515

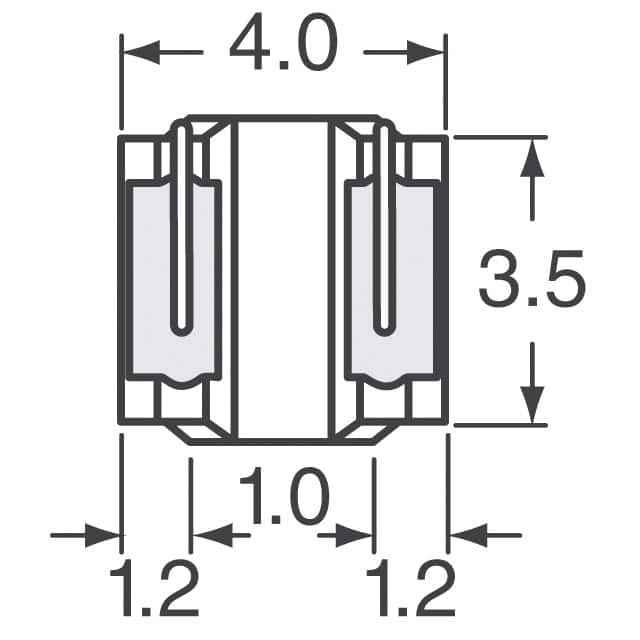

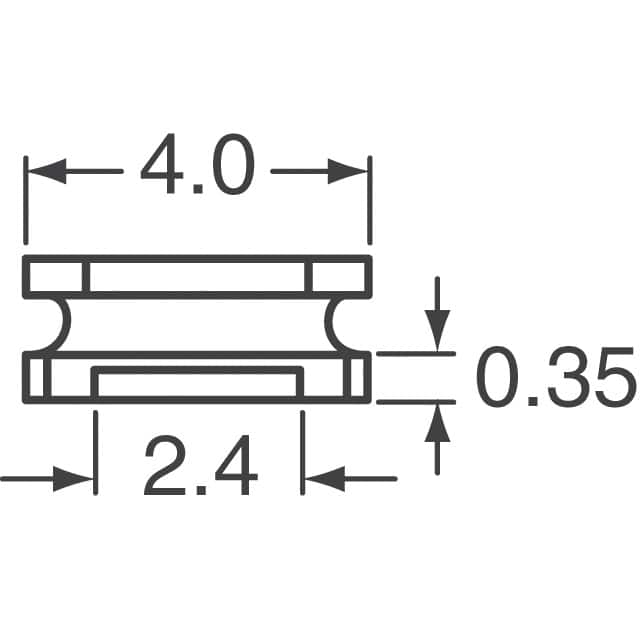

长度 4 mm
宽度 4 mm

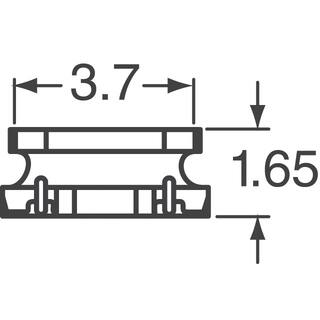

高度 1.65 mm
封装 1515
重量 0.07 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 1000
制造应用 工业, Power Management, Industrial, Power Management, Industrial, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQH44PN4R7MP0L muRata 村田 | 当前型号 | 当前型号 |
NRS4018T4R7MDGJ 太诱 | 功能相似 | LQH44PN4R7MP0L和NRS4018T4R7MDGJ的区别 |
