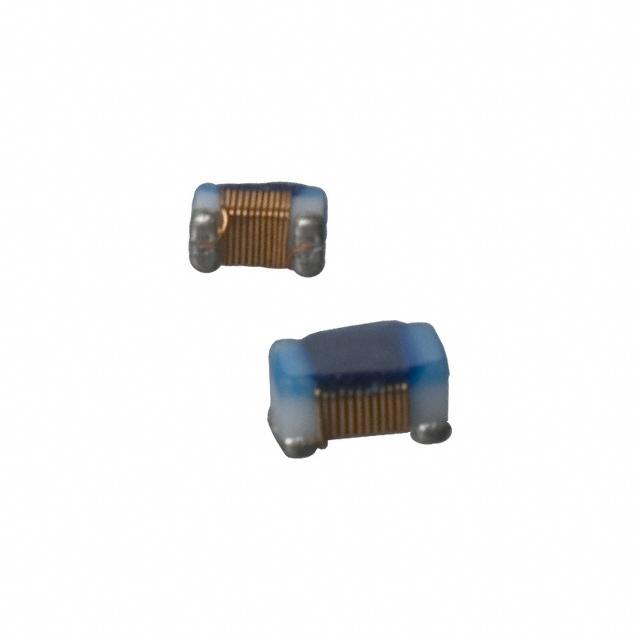

MURATA LQW15AN18NG00D 表面贴装高频电感器, LQW15A_00系列, 18 nH, ± 2%, 0402 [1005 公制], 4.5 GHz, 0.27 ohm
固定器
欧时:
Murata LQW15A 系列 铁氧体芯材 18 nH 绕线贴片电感器 LQW15AN18NG00D, ±2%容差, 370mA Idc Q:25
得捷:
FIXED IND 18NH 370MA 270MOHM SMD
立创商城:
18nH ±2% 270mΩ
e络盟:
高频电感器, 18 nH, LQW15A_00系列, 370 mA, 0402 [1005 公制], 绕线, 0.27 ohm
艾睿:
An ideal space-saving electronic component is this rf chip LQW15AN18NG00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device is made with wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4.5G Hz. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has a tolerance of 2%. This SMD inductor has a maximum DC current of 370m A with a maximum resistance of 270m Ohm. It has an inductance of 18n H.
安富利:
Ind RF Chip Wirewound 18nH 2% 100MHz 25Q-Factor 370mA 0402 Paper T/R
Chip1Stop:
Inductor RF Chip Wirewound 18nH 2% 100MHz 25Q-Factor 370mA 270mOhm DCR 0402 Paper T/R
TME:
Inductor: wire; SMD; 0402; 18nH; 370mA; 0.27Ω; Q:25; ftest:100MHz
Verical:
Inductor RF Chip Unshielded Wirewound 0.018uH 2% 100MHz 25Q-Factor Non Magnetic 0.37A 0.27Ohm DCR 0402 T/R
Newark:
# MURATA LQW15AN18NG00D Surface Mount High Frequency Inductor, LQW15A_00 Series, 18 nH, 370 mA, 0402 [1005 Metric]
儒卓力:
**LQW15A 0,018µH 370mA 2% WWT **
Win Source:
18nH Unshielded Wirewound Inductor 370mA 270 mOhm Max 0402 1005 Metric
额定电流 370 mA
容差 ±2 %
电感 18 nH
自谐频率 4.5 GHz
产品系列 LQW
电阻 270 mΩ
共振频率 4.50 GHz
电感公差 ±2 %
测试频率 100 MHz
电阻DC) ≤270 mΩ
额定电流DC 370 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
精度 ±2 %
电阻DC Max 0.27 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.6 mm
高度 0.5 mm
封装公制 1005
封装 0402
重量 0.003 g
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 Power Management, 工业, Industrial, 便携式器材, Consumer Electronics, Portable Devices, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
