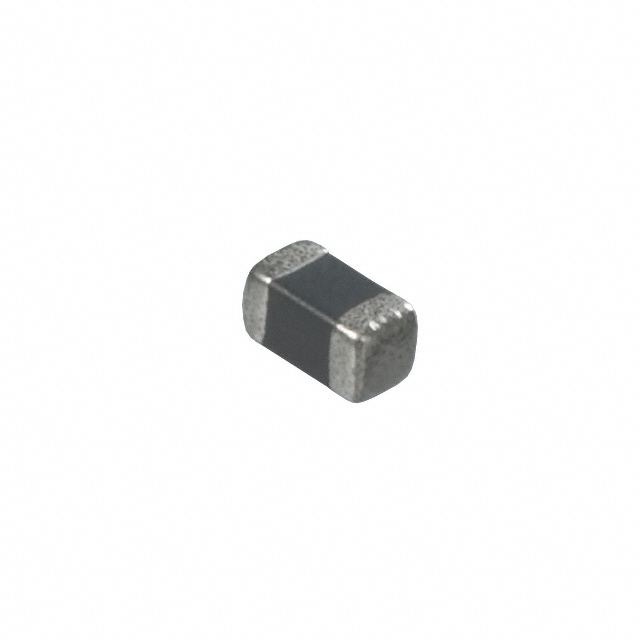

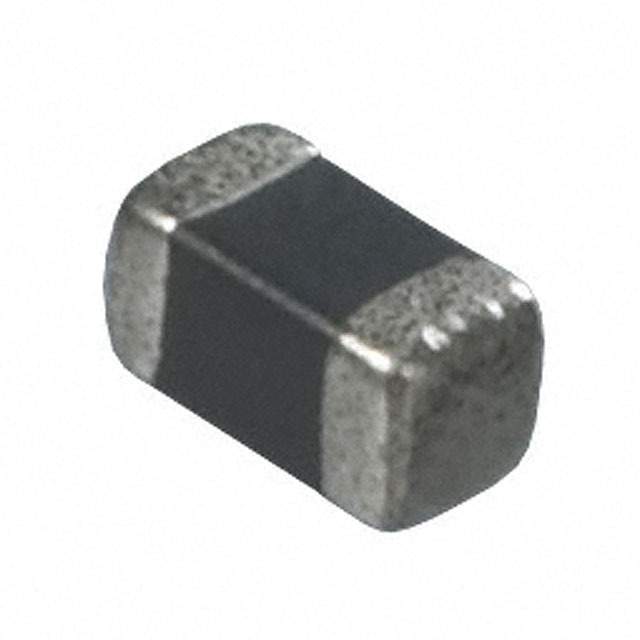

MURATA LQM18NN1R8K00D 表面贴装高频电感器, LQM18N系列, 1.8 µH, ± 10%, 0603 [1608 公制], 55 MHz, 0.95 ohm
固定器
得捷:
FIXED IND 1.8UH 25MA 950MOHM SMD
欧时:

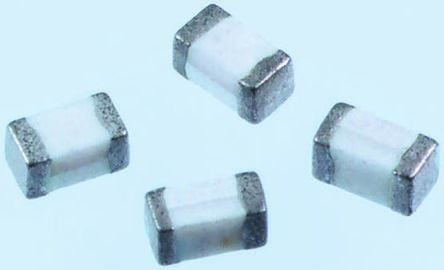

Murata LQM18N 系列 屏蔽 1.8 μH 绕线贴片电感器 LQM18NN1R8K00D, ±10%容差, 25mA Idc Q:35
立创商城:
1.8uH ±10% 950mΩ
e络盟:
高频电感器, 1.8 µH, LQM18N系列, 25 mA, 0603 [1608 公制], 多层, 0.95 ohm
艾睿:
This general purpose chip LQM18NN1R8K00D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 1.8u H. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 55M Hz. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 25m A with a maximum resistance of 950m Ohm. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. This device utilizes multi-layer technology.
安富利:
Ind General Purpose Chip Shielded Multi-Layer 1.8uH 10% 10MHz 35Q-Factor Ferrite 25mA 0603 Paper T/R
Chip1Stop:
Inductor General Purpose Chip Shielded Multi-Layer 1.8uH 10% 10MHz 35Q-Factor Ferrite 25mA 950mOhm DCR 0603 Paper T/R
Verical:
Inductor General Purpose Chip Shielded Multi-Layer 1.8uH 10% 10MHz 35Q-Factor Ferrite 25mA 950mOhm DCR 0603 T/R
Newark:
# MURATA LQM18NN1R8K00D Surface Mount High Frequency Inductor, LQM18N Series, 1.8 µH, 25 mA, 0603 [1608 Metric], Multilayer
额定电流 25 mA
容差 ±10 %
电感 1.8 µH
自谐频率 55 MHz
Q值 35.0
产品系列 LQM
电阻 950 mΩ
共振频率 55.0 MHz
电感公差 ±10 %
测试频率 10 MHz
电阻DC) ≤950 mΩ
额定电流DC 25 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±10 %
电阻DC Max 0.95 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 4000
制造应用 射频通信, 通信与网络, 便携式器材, Consumer Electronics, RF Communications, Power Management, 电源管理, 消费电子产品, Communications & Networking, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQM18NN1R8K00D muRata 村田 | 当前型号 | 当前型号 |
CMI160808U1R8KT 风华高科 | 功能相似 | LQM18NN1R8K00D和CMI160808U1R8KT的区别 |
L0603C1R8KSMST 基美 | 功能相似 | LQM18NN1R8K00D和L0603C1R8KSMST的区别 |
LK16081R8K 太诱 | 功能相似 | LQM18NN1R8K00D和LK16081R8K的区别 |
