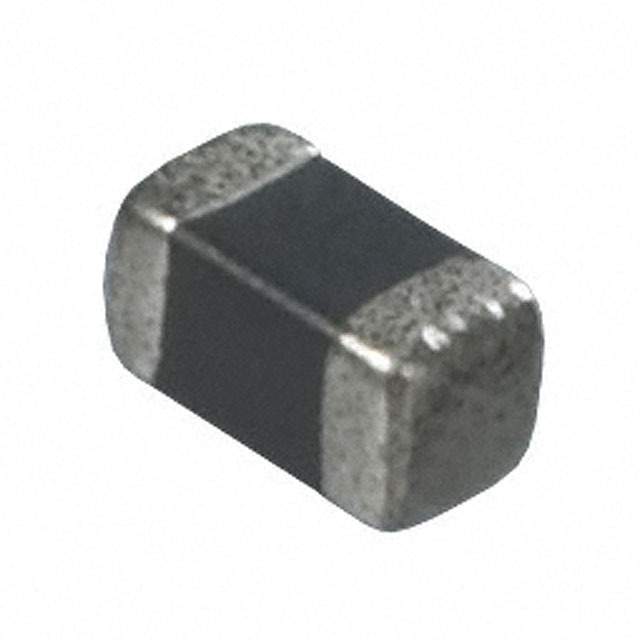

MURATA LQM18NNR15K00D 表面贴装高频电感器, LQM18N系列, 150 nH, ± 10%, 0603 [1608 公制], 180 MHz, 0.6 ohm
150 nH 屏蔽 多层 器 50 mA 600 毫欧最大 0603(1608 公制)
立创商城:
150nH ±10% 600mΩ
得捷:
FIXED IND 150NH 50MA 600MOHM SMD
e络盟:
MURATA LQM18NNR15K00D 表面贴装高频电感器, LQM18N系列, 150 nH, ± 10%, 0603 [1608 公制], 180 MHz, 0.6 ohm
艾睿:
This general purpose chip LQM18NNR15K00D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 50m A with a maximum resistance of 600m Ohm. This device is made with multi-layer technology. It has an inductance of 150n H. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. It has a tolerance of 10%. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 180M Hz.
安富利:
Ind General Purpose Chip Shielded Multi-Layer 150nH 10% 25MHz 15Q-Factor Ferrite 50mA 0603 Paper T/R
Chip1Stop:
Inductor General Purpose Chip Shielded Multi-Layer 150nH 10% 25MHz 15Q-Factor Ferrite 50mA 600mOhm DCR 0603 T/R
Win Source:
150nH Shielded Multilayer Inductor 50mA 600 mOhm Max 0603 1608 Metric
额定电流 50 mA
容差 ±10 %
电感 150 nH
自谐频率 180 MHz
Q值 15.0
产品系列 LQM
电阻 600 mΩ
共振频率 180 MHz
屏蔽 Yes
电感公差 ±10 %
测试频率 25 MHz
电阻DC) ≤600 mΩ
额定电流DC 50 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±10 %
电阻DC Max 0.6 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603

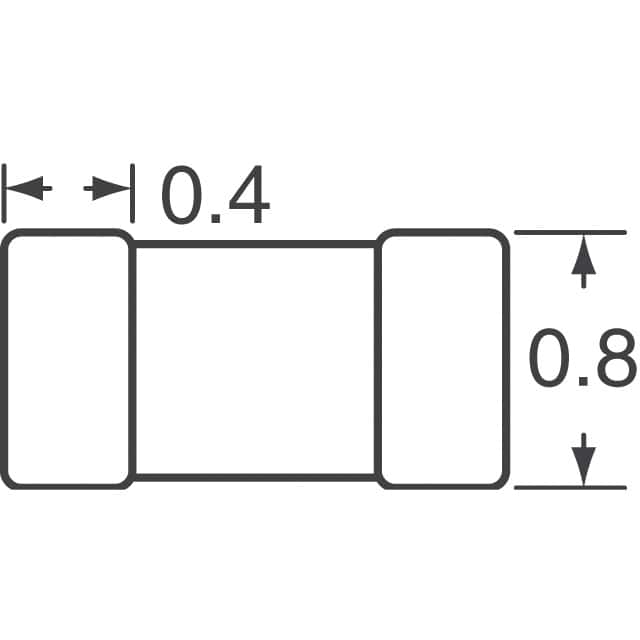

长度 1.6 mm

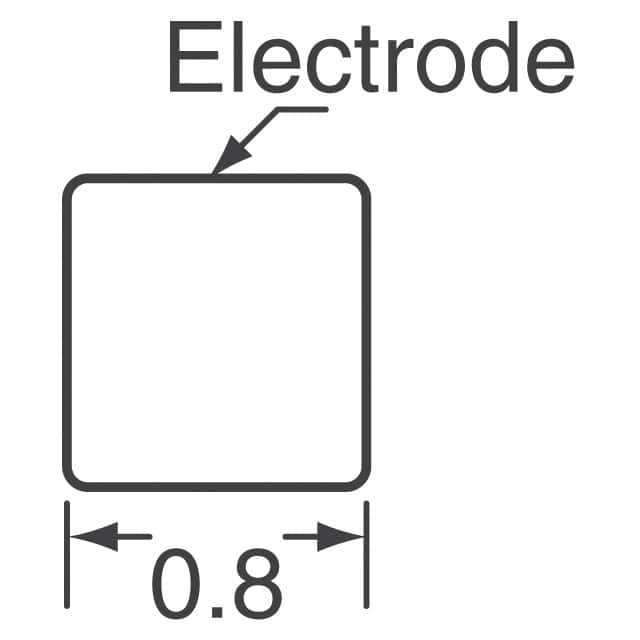

宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQM18NNR15K00D muRata 村田 | 当前型号 | 当前型号 |
L0603CR15KSMST 基美 | 功能相似 | LQM18NNR15K00D和L0603CR15KSMST的区别 |
LK1608R15K 太诱 | 功能相似 | LQM18NNR15K00D和LK1608R15K的区别 |
