LQH32MN471J23L

MURATA  LQH32MN471J23L  表面贴装高频电感器, LQH32MN_23系列, 470 µH, ± 5%, 1210 [3225 公制], 5 MHz, 25 ohm

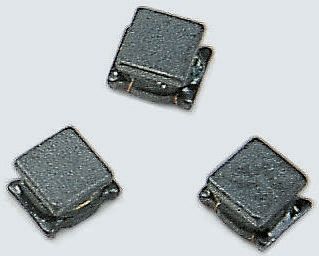

Murata 1210 LQH32MN 系列线绕器

超微型线圈电感器，带铁氧体磁芯，适合一般用途。

高质量和低直流电阻。

这些芯片特别适用于视频、通信、音频设备和移动电话中电子电路性能的提高。

欧时:
Murata LQH32MN 系列 470 μH 绕线贴片电感器 LQH32MN471J23L, ±5%容差, 45mA Idc Q:50, 25Ω最大直流电阻

得捷:
FIXED IND 470UH 45MA 25 OHM SMD

立创商城:
470uH ±5% 25Ω

e络盟:
高频电感器, 470 µH, LQH32MN_23系列, 45 mA, 1210 [3225 公制], 绕线, 25 ohm

艾睿:
This general purpose chip LQH32MN471J23L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 470u H. This device is made with wirewound technology. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 45m A with a maximum resistance of 25 Ohm. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 5M Hz. This product is 3.5 mm long, 2.2 mm tall and 2.7 mm deep.

安富利:
Ind General Purpose Chip Unshielded Wirewound 470uH 5% 1KHz 50Q-Factor Ferrite 45mA 1210 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 470uH 5% 1KHz 50Q-Factor Ferrite 45mA 25Ohm DCR 1210 T/R

Verical:
Inductor General Purpose Chip Unshielded Wirewound 470uH 5% 1KHz 50Q-Factor Ferrite 45mA 25Ohm DCR 1210 T/R

Newark:
# MURATA  LQH32MN471J23L  Surface Mount High Frequency Inductor, LQH32C_23 Series, 470 µH, 45 mA, 1210 [3225 Metric]

Win Source:
470μH Unshielded Wirewound Inductor 45mA 25 Ohm Max 1210 3225 Metric
