LQH55DN4R7M03L

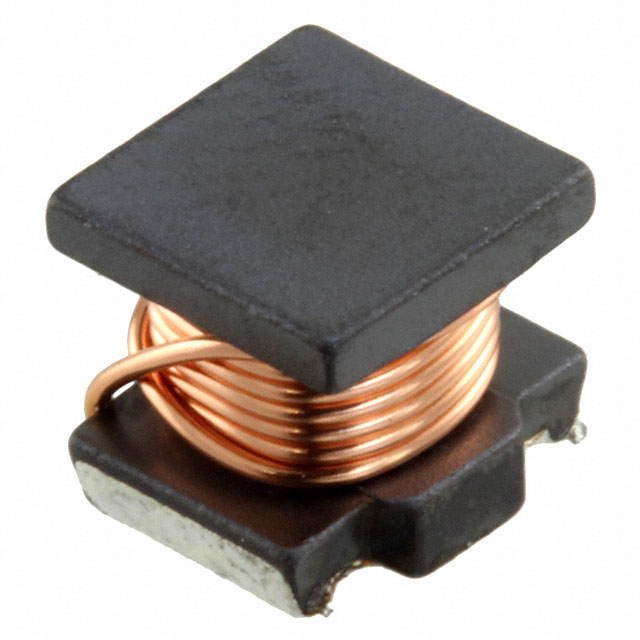

MURATA  LQH55DN4R7M03L  表面贴装高频电感器, LQH55D系列, 4.7 µH, ± 20%, 2220 [5650 公制], 30 MHz, 0.041 ohm

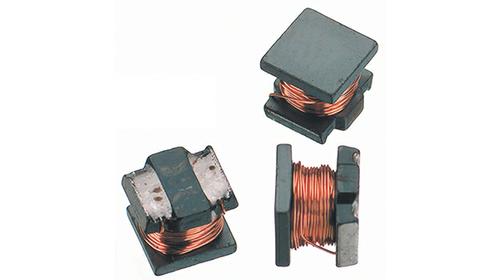

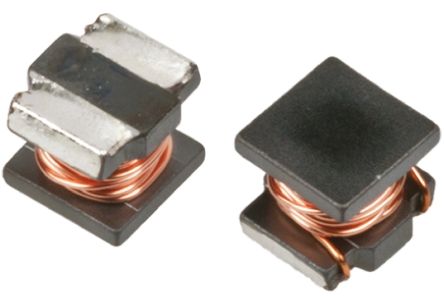

Murata 2220 LQH55D 系列线绕扼流圈

LQH55D 系列线绕器，用于扼流圈应用

使用高性能厚线绕技术。

低直流电阻、大电流容量和大电感

用于直流-直流转换器和直流电源电路

欧时:
Murata LQH55D 系列 4.7 μH 绕线贴片电感器 LQH55DN4R7M03L, ±20%容差, 2.7A Idc, 41mΩ最大直流电阻

得捷:
FIXED IND 4.7UH 2.7A 57.4MOHM SM

立创商城:
4.7uH ±20% 41mΩ

贸泽:
Fixed Inductors 4.7uH 20%

e络盟:
高频电感器, 4.7 µH, LQH55D系列, 2.7 A, 2220 [5650 公制], 绕线, 0.041 ohm

艾睿:
Inductor Power Chip Unshielded Wirewound 4.7uH 20% 1MHz Ferrite 2.7A 0.0574Ohm DCR 2220 T/R

安富利:
Ind Power Chip Unshielded Wirewound 4.7uH 20% 1MHz Ferrite 2.7A 2220 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 4.7uH 20% 1MHz Ferrite 2.7A 57.4mOhm DCR 2220 Embossed T/R

TME:

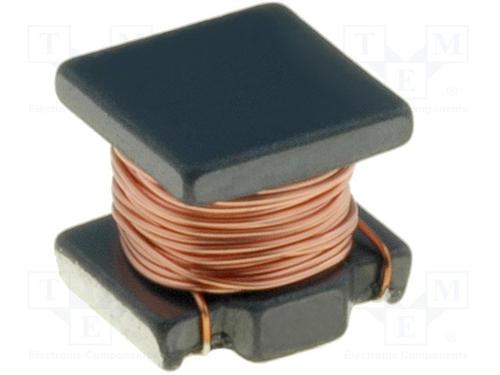

Inductor: wire; SMD; 2220; 4.7uH; 2700mA; 0.041Ω; 5.7x5x4.7mm; ±20%

Verical:
Inductor Power Chip Unshielded Wirewound 4.7uH 20% 1MHz Ferrite 2.7A 0.0574Ohm DCR 2220 T/R

Newark:
Surface Mount High Frequency Inductor, LQH55D Series, 4.7 µH, 2.7 A, 2220 [5650 Metric], Wirewound

儒卓力:
**LQH55DN 4,7uH 2700mA 20% WWT **

Win Source:
4.7μH Unshielded Wirewound Inductor 2.7A 57.4 mOhm Max 2220 5750 Metric
