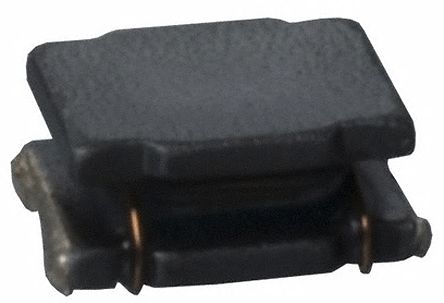

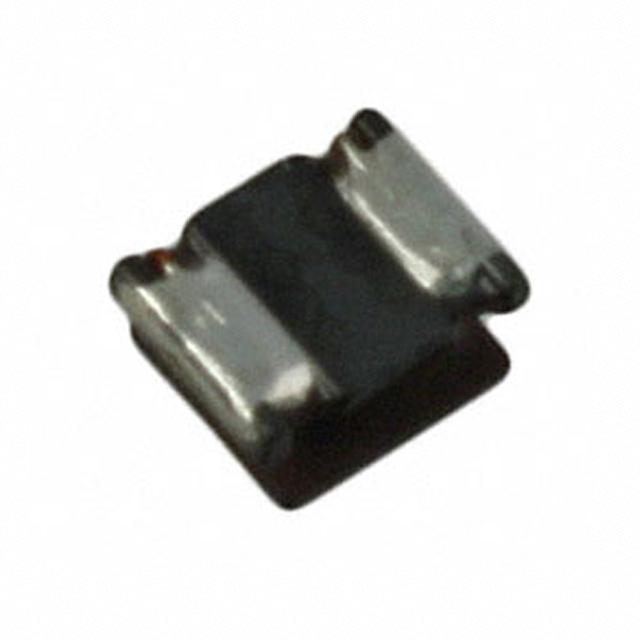

LQH32PN2R2NNCL

MURATA  LQH32PN2R2NNCL  表面贴装高频电感器, LQH32P_NC系列, 2.2 µH, ± 30%, 1210 [3225 公制], 70 MHz, 0.064 ohm

固定器

得捷:
FIXED IND 2.2UH 1.85A 76.8 MOHM

立创商城:
2.2uH ±30% 1.85A 64mΩ

欧时:
Murata LQH32PN_NC 系列 屏蔽 铁氧体芯材 2.2 μH 绕线贴片电感器 LQH32PN2R2NNCL, ±30%容差, 2A Idc

e络盟:
高频电感器, 2.2 µH, LQH32P_NC系列, 1.85 A, 1210 [3225 公制], 绕线, 0.064 ohm

艾睿:
This power chip LQH32PN2R2NNCL surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 3.5 mm long, 1.7 mm tall and 2.7 mm deep. This device is made with wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 70M Hz. It has an inductance of 2.2u H. This SMD inductor has a maximum DC current of 1.85 A with a maximum resistance of 76.8m Ohm.

安富利:
Ind Power Chip Shielded Wirewound 2.2uH 30% 1MHz Ferrite 1.85A Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Wirewound 2.2uH 30% 1MHz Ferrite 1.85A 76.8mOhm DCR 1210 T/R

Verical:
Inductor Power Chip Shielded Wirewound 2.2uH 30% 1MHz Ferrite 1.85A 0.0768Ohm DCR 1210 T/R

Newark:
# MURATA  LQH32PN2R2NNCL  Surface Mount High Frequency Inductor, LQH32P_NC Series, 2.2 H, 30%, 1210 [3225 Metric], 70 MHz
