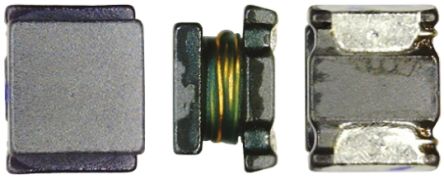

LQH32MN4R7K23L

MURATA  LQH32MN4R7K23L  表面贴装高频电感器, LQH32MN_23系列, 4.7 µH, ± 10%, 1210 [3225 公制], 31 MHz, 1.2 ohm

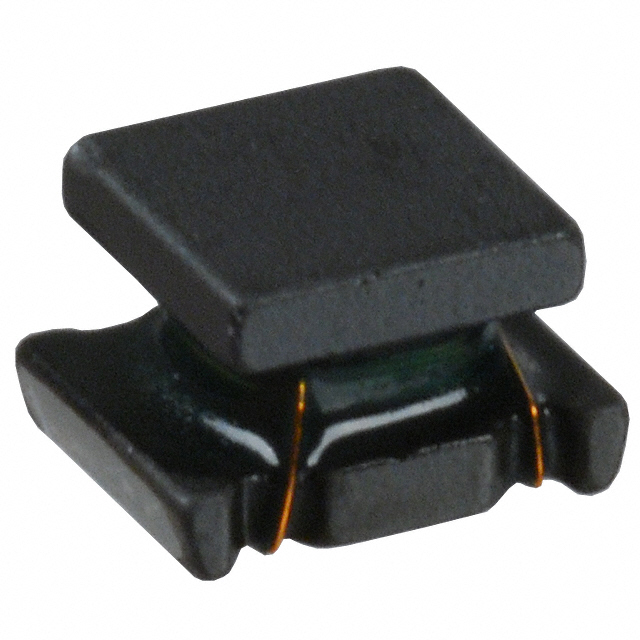

Murata 1210 LQH32MN 系列线绕器

超微型线圈电感器，带铁氧体磁芯，适合一般用途。

高质量和低直流电阻。

这些芯片特别适用于视频、通信、音频设备和移动电话中电子电路性能的提高。

欧时:
### Murata 1210 LQH32MN 系列线绕电感器超微型线圈电感器，带铁氧体磁芯，适合一般用途。 高质量和低直流电阻。 这些芯片特别适用于视频、通信、音频设备和移动电话中电子电路性能的提高。 ![http://china.rs-online.com/largeimages/L0109346-10.jpg]http://china.rs-online.com/largeimages/L0109346-10.jpg ### 表面安装 1210 电感器（扼流圈）

得捷:
FIXED IND 4.7UH 270MA 1.2OHM SMD

立创商城:
4.7uH ±10% 270mA 1.2Ω

e络盟:
高频电感器, 4.7 µH, LQH32MN_23系列, 270 mA, 1210 [3225 公制], 绕线, 1.2 ohm

艾睿:
This general purpose chip LQH32MN4R7K23L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 10%. This device utilizes wirewound technology. This product is 3.5 mm long, 2.2 mm tall and 2.7 mm deep. It has an inductance of 4.7u H. This SMD inductor has a maximum DC current of 270m A with a maximum resistance of 1.2 Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 31M Hz.

安富利:
Ind General Purpose Chip Unshielded Wirewound 4.7uH 10% 1MHz 20Q-Factor Ferrite 270mA 1210 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 4.7uH 10% 1MHz 20Q-Factor Ferrite 270mA 1.2Ohm DCR 1210 T/R

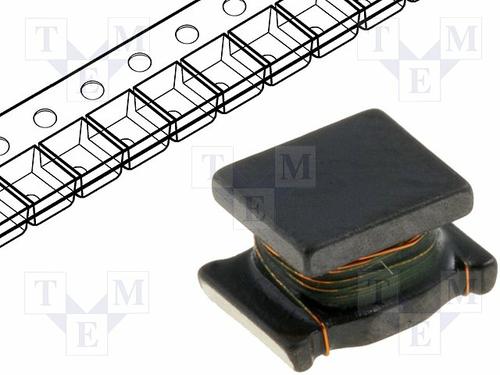

TME:

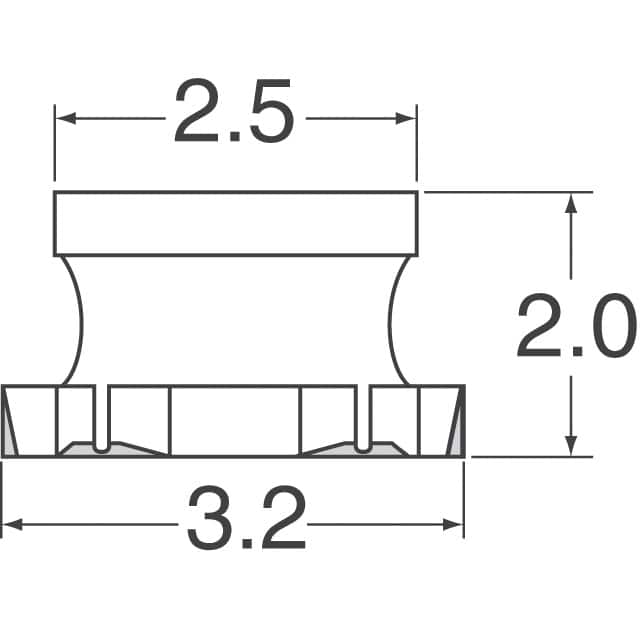

Inductor: wire; SMD; 1210; 4.7uH; 270mA; 1.2Ω; 3.2x2.5x1.55mm; ±10%

Verical:
Inductor General Purpose Chip Unshielded Wirewound 4.7uH 10% 1MHz 20Q-Factor Ferrite 0.27A 1.2Ohm DCR 1210 T/R

Newark:
# MURATA  LQH32MN4R7K23L  Surface Mount High Frequency Inductor, LQH32C_23 Series, 4.7 µH, 270 mA, 1210 [3225 Metric]

儒卓力:
**LQH32MN 4,7uH 270mA 10% WWT **

Win Source:
4.7μH Unshielded Wirewound Inductor 270mA 1.2 Ohm Max 1210 3225 Metric
