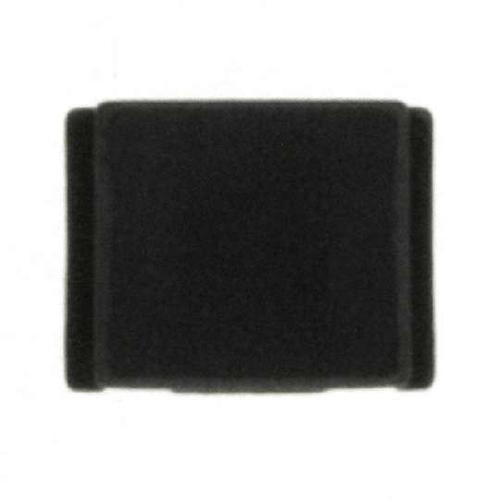

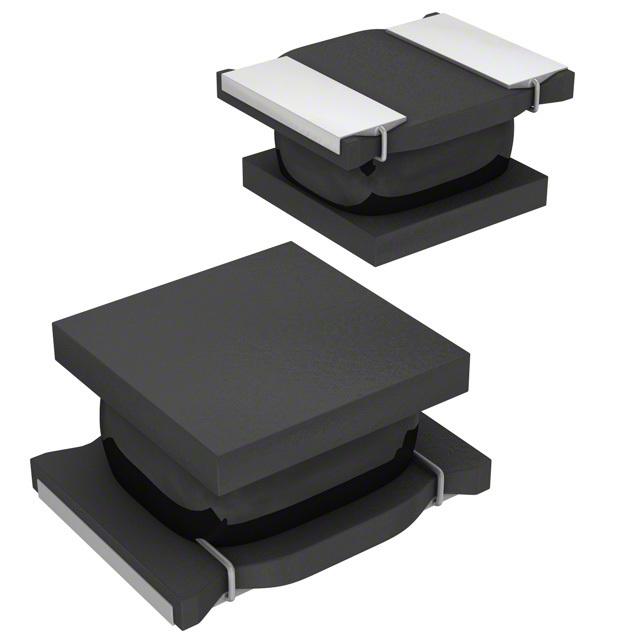

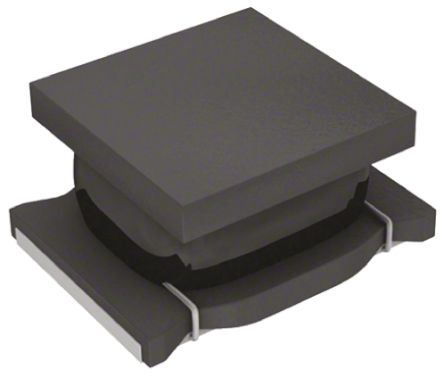

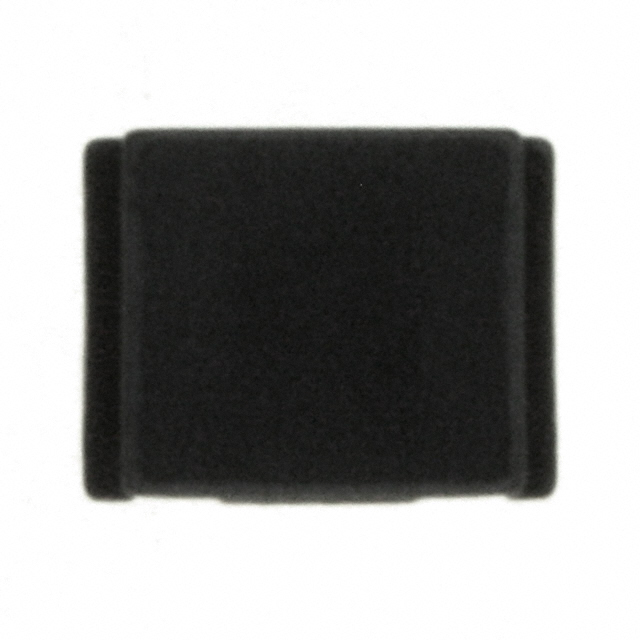

MURATA LQH32PN3R3NN0L 表面贴装高频电感器, LQH32PN系列, 3.3 µH, ± 30%, 1210 [3225 公制], 50 MHz, 0.12 ohm
固定器
得捷:
FIXED IND 3.3UH 1.2A 144MOHM SMD
立创商城:
3.3uH ±30% 1.2A 120mΩ
欧时:
Murata LQH32P 系列 屏蔽 铁氧体芯材 3.3 μH 绕线贴片电感器 LQH32PN3R3NN0L, ±30%容差, 1.2A Idc
贸泽:
Fixed Inductors 1210 3.3uH 30%
e络盟:
高频电感器, 3.3 µH, LQH32PN系列, 1.25 A, 1210 [3225 公制], 屏蔽, 0.12 ohm
艾睿:
Inductor Power Chip Shielded Wirewound 3.3uH 30% 1MHz Ferrite 1.2A 0.144Ohm DCR 1210 T/R
安富利:
Ind Power Chip Shielded Wirewound 3.3uH 30% 1MHz Ferrite 1.2A 1210 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Wirewound 3.3uH 30% 1MHz Ferrite 1.2A 144mOhm DCR 1210 Embossed T/R
Verical:
Inductor Power Chip Shielded Wirewound 3.3uH 30% 1MHz Ferrite 1.2A 0.144Ohm DCR 1210 T/R
Newark:
# MURATA LQH32PN3R3NN0L Surface Mount High Frequency Inductor, LQH32PN Series, 3.3 H, 30%, 1210 [3225 Metric], 50 MHz
儒卓力:
**LQH32PN 3,3uH 1200mA 30% WWT **
Win Source:
FIXED IND 3.3UH 1.2A 120 MOHM
额定电流 1.2 A
容差 ±30 %
电感 3.3 µH
自谐频率 50 MHz
产品系列 LQH
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤144 mΩ
额定电流DC 1.25 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.12 Ω
安装方式 Surface Mount
封装公制 3225
封装 1210

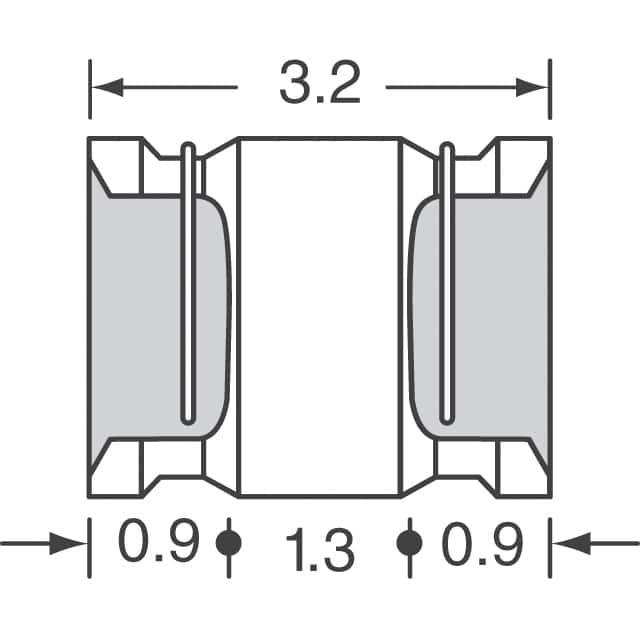

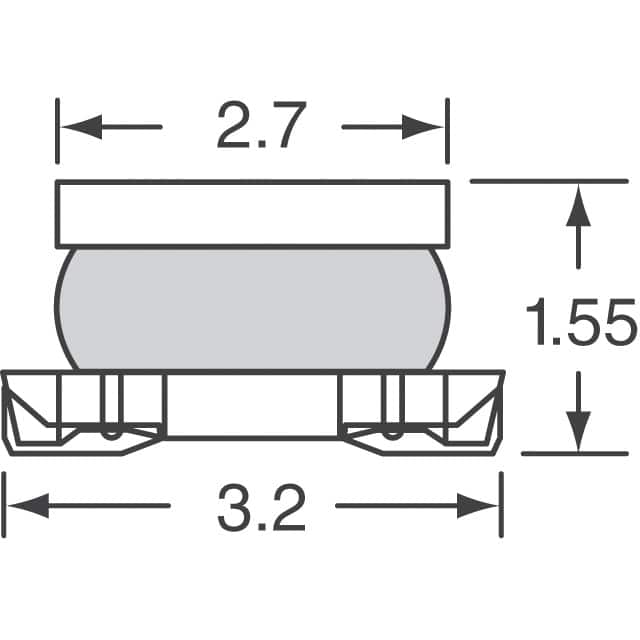

长度 3.2 mm
宽度 2.5 mm
高度 1.55 mm
封装公制 3225
封装 1210
重量 0.044 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
