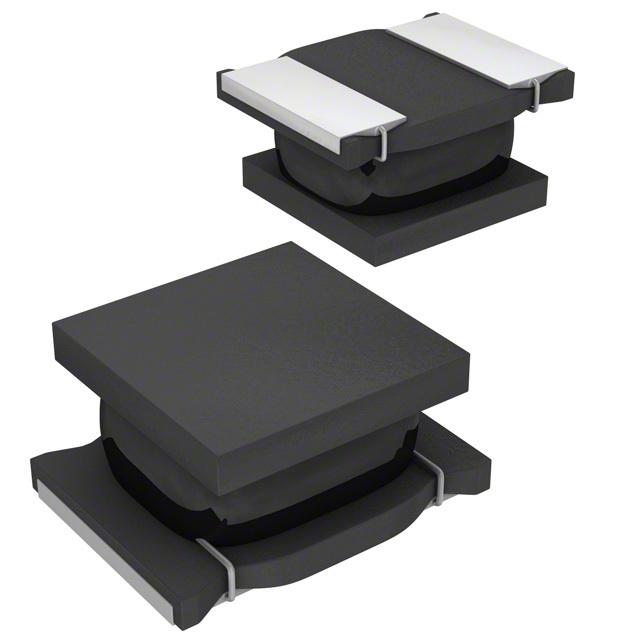

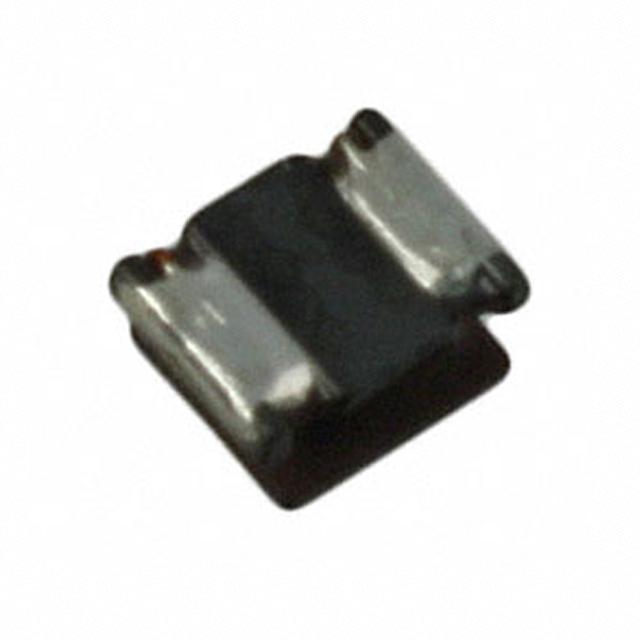

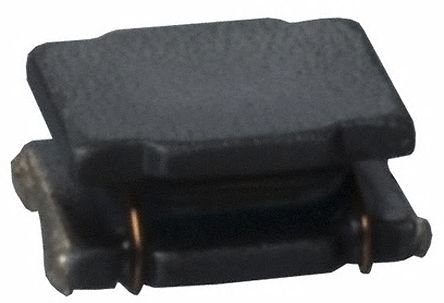

LQH32PN220MNCL

MURATA  LQH32PN220MNCL  表面贴装高频电感器, LQH32P_NC系列, 22 µH, ± 20%, 1210 [3225 公制], 20 MHz, 0.685 ohm

LQH32PN 系列 SMD 片状器

Murata LQH 系列线绕片状电感器包括一根绕在铁氧体磁芯上的铜线。 大多数 LQH 系列片状电感器铁氧体磁芯上采用不同树脂涂层，该涂层可提高电感器的强度。 这些线绕片状电感器可用于提供高感应值，非常适合电源增压器电路。 符合 RoHS 标准。

### 应用

数码相机

移动电话

TV

游戏机

欧时:
Murata LQH32PN_NC 系列 屏蔽 铁氧体芯材 22 μH 绕线贴片电感器 LQH32PN220MNCL, ±20%容差, 650mA Idc

得捷:
FIXED IND 22UH 550MA 822MOHM SMD

立创商城:
22uH ±20% 650mA 822mΩ

艾睿:
An ideal space-saving electronic component is this power chip LQH32PN220MNCL surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 20M Hz. This product is 3.5 mm long, 1.7 mm tall and 2.7 mm deep. This SMD inductor has a maximum DC current of 550m A with a maximum resistance of 822m Ohm. It has a tolerance of 20%. It has an inductance of 22u H. This device utilizes wirewound technology.

安富利:
Ind Power Chip Shielded Wirewound 22uH 20% 1MHz Ferrite 550mA 1210 Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Wirewound 22uH 20% 1MHz Ferrite 550mA 822mOhm DCR 1210 T/R

Verical:
Inductor Power Chip Shielded Wirewound 22uH 20% 1MHz Ferrite 0.55A 0.822Ohm DCR 1210 T/R

Newark:
# MURATA  LQH32PN220MNCL  Surface Mount High Frequency Inductor, LQH32P_NC Series, 22 H, 20%, 1210 [3225 Metric], 20 MHz

儒卓力:
**LQH32PN 22uH 650mA 20% WWT **
