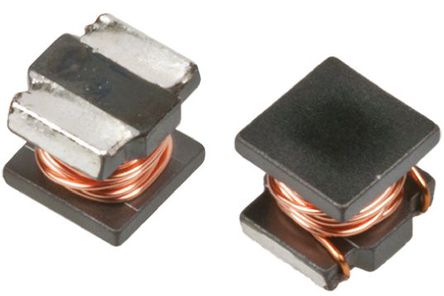

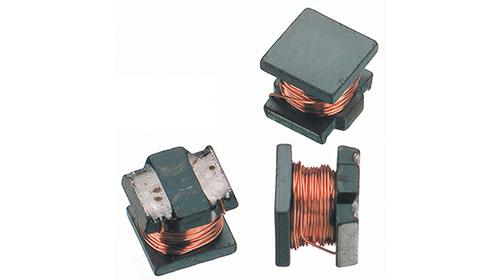

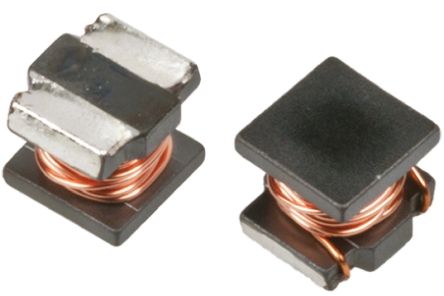

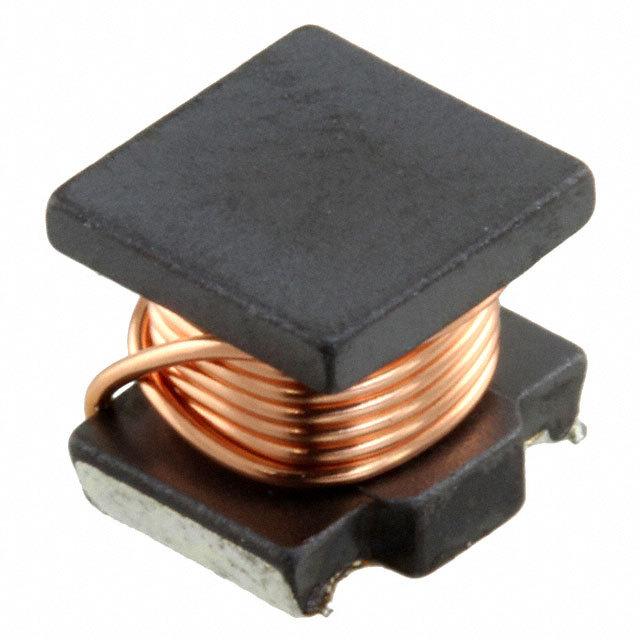

MURATA LQH55DN2R2M03L 表面贴装高频电感器, LQH55D系列, 2.2 µH, ± 20%, 2220 [5650 公制], 80 MHz, 0.029 ohm
固定器
得捷:
FIXED IND 2.2UH 3.2A 40.6MOHM SM
立创商城:
2.2uH ±20% 3.2A 29mΩ
欧时:
### Murata 2220 LQH55D 系列线绕扼流圈LQH55D 系列线绕电感器,用于扼流圈应用 使用高性能厚线绕技术。 低直流电阻、大电流容量和大电感 用于直流-直流转换器和直流电源电路 ### 表面安装 2220 电感器(扼流圈)
e络盟:
高频电感器, 2.2 µH, LQH55D系列, 3.2 A, 2220 [5650 公制], 绕线, 0.029 ohm
艾睿:
Use this power chip LQH55DN2R2M03L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 80 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 80M Hz. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 3.2 A with a maximum resistance of 40.6m Ohm. It has a tolerance of 20%. It has an inductance of 2.2u H. This product is 6 mm long, 5 mm tall and 5.3 mm deep.
安富利:
Ind Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 3.2A 2220 Embossed T/R
Chip1Stop:
Inductor Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 3.2A 40.6mOhm DCR 2220 Embossed T/R
Verical:
Inductor Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 3.2A 0.0406Ohm DCR 2220 T/R
Newark:
# MURATA LQH55DN2R2M03L Surface Mount High Frequency Inductor, LQH55D Series, 2.2 µH, 3.2 A, 2220 [5650 Metric], Wirewound
儒卓力:
**LQH55DN 2,2uH 3200mA 20% WWT **
Win Source:
2.2μH Unshielded Wirewound Inductor 3.2A 40.6 mOhm Max 2220 5750 Metric
额定电流 3.2 A
容差 ±20 %
电感 2.2 µH
自谐频率 80 MHz
产品系列 LQH
电阻 29.0 mΩ
共振频率 80.0 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) 0.0406 Ω
额定电流DC 3.2 A
工作温度Max 80 ℃
工作温度Min -40 ℃
电阻DC Max 0.029 Ω
安装方式 Surface Mount
引脚数 2
封装 2220
长度 5.7 mm
宽度 5.0 mm
高度 4.7 mm
封装 2220
重量 0.48 g
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 350
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
