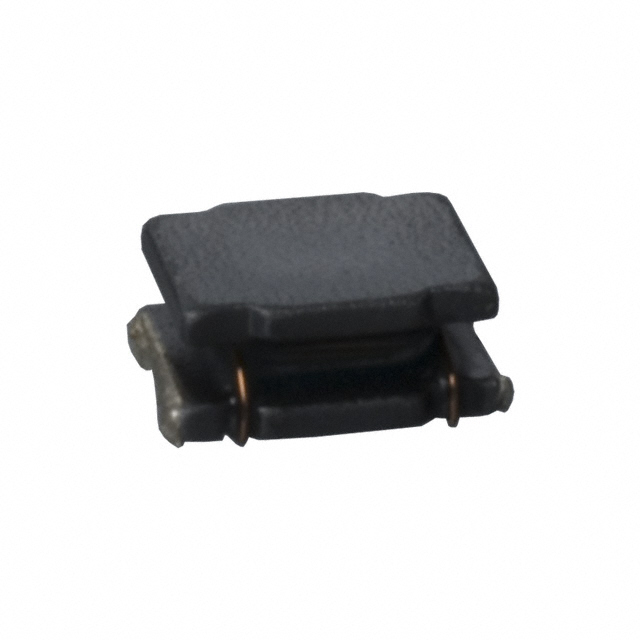

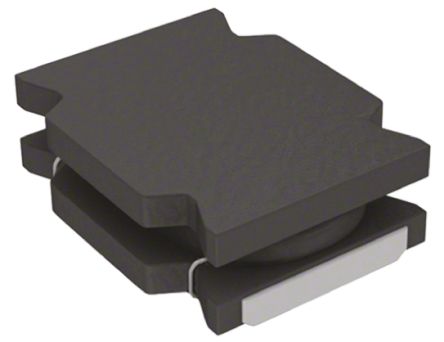

MURATA LQH2MCN330K02L 表面贴装高频电感器, LQH2MC_02系列, 33 µH, ± 10%, 0806 [2016 公制], 28 MHz, 2.8 ohm
Murata 0806 LQH2MC_02 系列线绕扼流圈
LQH2MC_02 系列薄型(最大 0.95mm)线绕芯片器
尺寸:2.0x1.6mm 0806
### 表面安装 0806 电感器(扼流圈)
得捷:
FIXED IND 33UH 160MA 3.64OHM SMD
立创商城:
33uH ±10% 2.8Ω
欧时:
### Murata 0806 LQH2MC_02 系列线绕扼流圈LQH2MC_02 系列薄型(最大 0.95mm)线绕芯片电感器 尺寸:2.0x1.6mm 0806 ### 表面安装 0806 电感器(扼流圈)
贸泽:
Fixed Inductors Choke Circuit Coated 33uH
e络盟:
高频电感器, 33 µH, LQH2MC_02系列, 160 mA, 0806 [2016 公制], 绕线, 2.8 ohm
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power chip LQH2MCN330K02L surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 28M Hz. This SMD inductor has a maximum DC current of 160m A with a maximum resistance of 3.64 Ohm. It has a tolerance of 10%. It has an inductance of 33u H. This product is 2.2 mm long, 0.95 mm tall and 1.8 mm deep.
安富利:
Ind Power Chip Unshielded Wirewound 33uH 10% 1MHz Ferrite 160mA 0806 Embossed T/R
富昌:
LQH2MC_02 系列 0806 33 µH 10 % 160 mA 非屏蔽 SMD 功率电感
Chip1Stop:
Inductor Power Chip Unshielded Wirewound 33uH 10% 1MHz Ferrite 160mA 3.64Ohm DCR 0806 T/R
Verical:
Inductor Power Chip Unshielded Wirewound 33uH 10% 1MHz Ferrite 0.16A 3.64Ohm DCR 0806 T/R
儒卓力:
**LQH2MC 33uH 160mA 10% WWT **
Win Source:
33μH Unshielded Wirewound Inductor 160mA 3.64 Ohm Max 0806 2016 Metric
额定电流 160 mA
容差 ±10 %
电感 33 µH
自谐频率 28 MHz
产品系列 LQH
电阻 2.80 Ω
阻值偏差 ±30 %
共振频率 28.0 MHz
屏蔽 No
电感公差 ±10 %
测试频率 1 MHz
电阻DC) ≤3.64 Ω
额定电流DC 160 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 2.8 Ω
安装方式 Surface Mount
引脚数 2
封装 0806

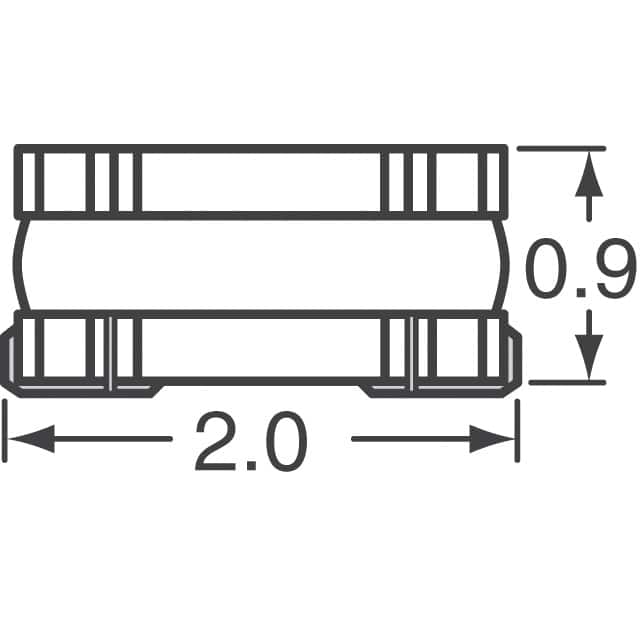

长度 2 mm

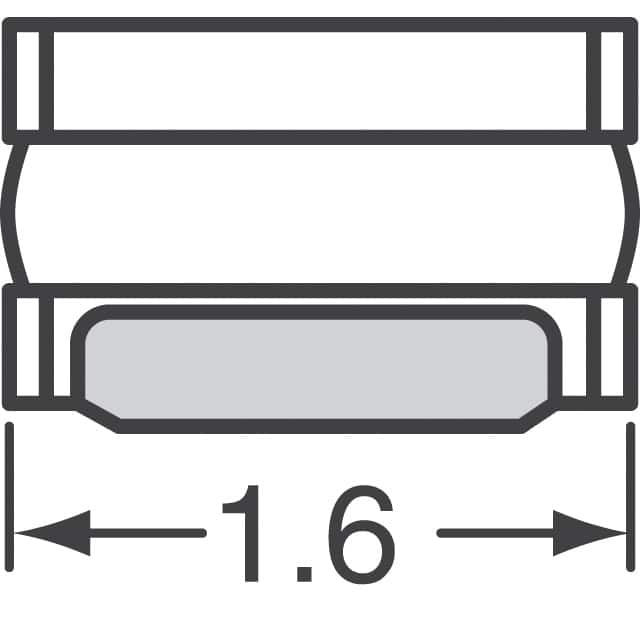

宽度 1.6 mm
高度 0.9 mm
封装 0806
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
ECCN代码 EAR99
