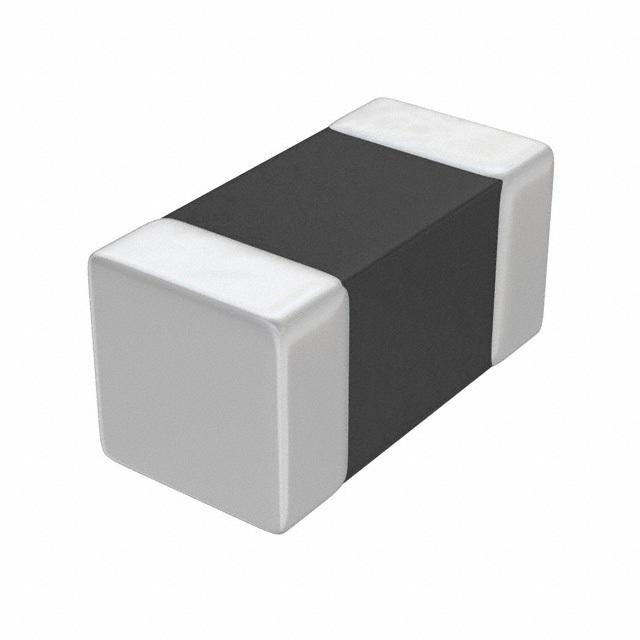

LQG15HN33NJ02D

MURATA  LQG15HN33NJ02D  表面贴装高频电感器, LQG15HN系列, 33 nH, ± 5%, 0402 [1005 公制], 1.5 GHz, 0.67 ohm

固定器

欧时:
Fixed Inductor 33nH 200mA 670 mOhm

得捷:
FIXED IND 33NH 300MA 670MOHM SMD

立创商城:
33nH ±5% 670mΩ

e络盟:
高频电感器, 33 nH, LQG15HN系列, 200 mA, 0402 [1005 公制], 多层, 0.67 ohm

艾睿:
This rf chip LQG15HN33NJ02D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.5G Hz. This device is made with multi-layer technology. It has a tolerance of 5%. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 670m Ohm. It has an inductance of 33n H.

安富利:
Ind RF Chip Multi-Layer 33nH 5% 100MHz 8Q-Factor Air 200mA 0402 Paper T/R

富昌:
FIXED IND 33NH 300MA 670 MOHM

Chip1Stop:
Inductor RF Chip Multi-Layer 33nH 5% 100MHz 8Q-Factor Air 200mA 670mOhm DCR 0402 T/R

TME:
Inductor: ceramic; SMD; 0402; 33nH; 200mA; 0.67Ω; Q:8; ftest:1000MHz

Verical:
Inductor RF Chip Unshielded Multi-Layer 33nH 5% 100MHz 8Q-Factor Ceramic 300mA 670mOhm DCR 0402 T/R

Newark:
# MURATA  LQG15HN33NJ02D  Surface Mount High Frequency Inductor, LQG15HN Series, 33 nH, 200 mA, 0402 [1005 Metric]

儒卓力:
**LQG15HN 0,033uH 200mA 5% MLT **

Win Source:
FIXED IND 33NH 200MA 670 MOHM
