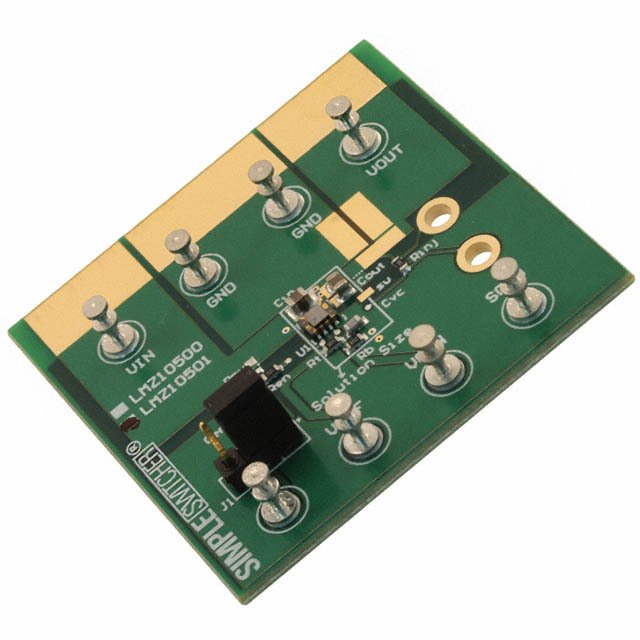

LMZ10501EVAL/NOPB

Evaluation Board For 1A Simple Switcher Nano Module With 5.5V Maximum Input Voltage

The is an evaluation board for LMZ10501, 650mA simple switcher nano module easy to use DC to DC solutions optimised for space constrained applications. The LMZ10501 is capable of driving up to 1A load with excellent power conversion efficiency, line and load regulation and EMI performance. The LMZ10501 evaluation board is configured for 1.8V output voltage from 2.7V to 5.5V input. The resistor voltage divider RT and RB set the output voltage. The external capacitor CVC bypasses the VCON pin and provides additional soft start time. The board features additional component footprints for various device enabling schemes and AC signal injection terminals for feedback loop measurements.

.

Adjustable output voltage

.

2MHz fixed PWM switching frequency

.

Integrated compensation

.

Soft start function

.

Current limit protection

.

Thermal shutdown protection

.

Input voltage UVLO for power up, power down, and brown out conditions

.

Up to 1A output current

.

High efficiency reduces system heat generation
