LPS153-C

ARTESYN EMBEDDED TECHNOLOGIES  LPS153-C  封闭式电源 交流/直流, EMI滤波器, 固定/可调, 85 V, 264 V, 75 W, 15 V, 9.1 A

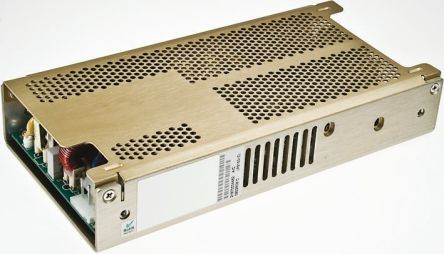

Astec 150W - LPS 150 Series, switch mode single output ac/dc power supply

150 W switch mode ac/dc power supply with single, adjustable output, automatic input measurement and high efficiency. These ac/dc power adapters feature an integral EMI filter and are supplied with an enclosure fitted.

Automatic measurement input

Adjustable output

Remote direction

.

*289-4970**

Remote shut-down

High efficiency, typical value 75% when fully charged

Single power cable

Low output jitter

Built-in EMI filter

Safety earth leakage current of 0.5 mA @ 50/60 Hz, input 264 V ac

Surge-protection and overload protection

EMC compliance FCC class B conducted, CISPR 22 class B conducted, EN55022 class B conducted, VDE 0878 PT3 class B conducted

### 注

The output power of 75 W for this ac/dc power supply is based on a specified convention with an enclosure fitted. Without this enclosure, the power would be 110 W. The maximum power output of 150 W for this ac/dc power supply can only be achieved when a fan is used, with 30 cfm of air; this power would be 130 W with an enclosure fitted.

Reduction of normal capacity of 50 to 70 ºC is 2.5% per ºC

Suitable connection kit for these ac/dc power supplies: RS code 151-751

### 认可

VDE; UL Recognized; CSA Certified; NEMKO; CB; BABT

### 标准

VDE: 0805/EN60950 IEC950, UL1950, CSA 22.2-234 Level 3, NEMKO: EN 60950/EMKO-TUE 74 sec 203, BABT: EN60950/BS7002

### 认可

VDE；UL 认可；CSA 认证；NEMKO；BABT

### 标准

EN61000-3-2
