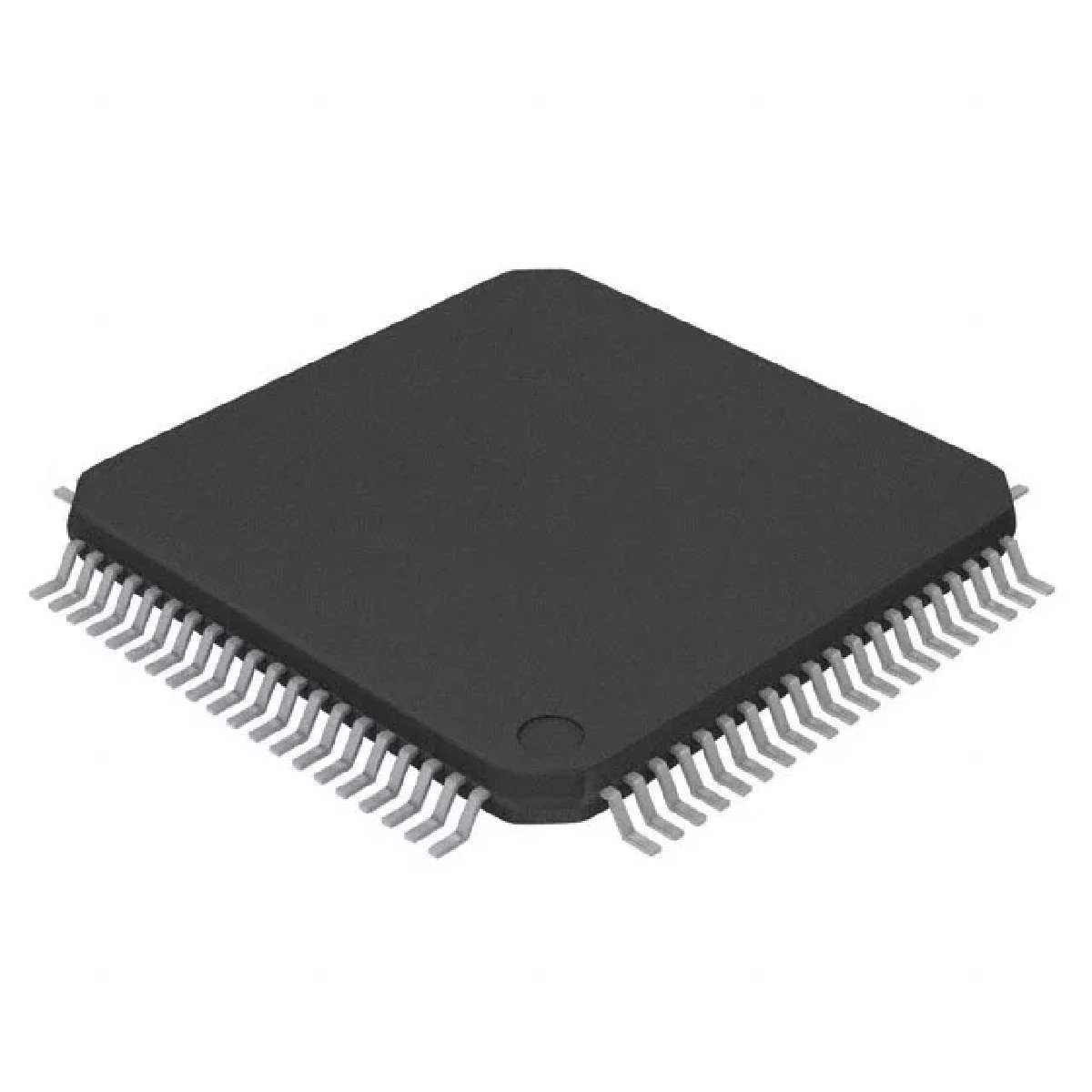

LPC4072FBD80E

NXP  LPC4072FBD80E  微控制器, 32位, ARM 皮质-M4, 120 MHz, 64 KB, 24 KB, 80 引脚, LQFP

The is an ARM Cortex-M4 based digital signal controller for embedded applications requiring a high level of integration and low power dissipation. The ARM Cortex-M4 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching.

.

Targeted to operate at up to 120 MHz CPU frequency.

.

One eight-channel 12-bit ADC

.

Two analog comparators

.

Non-maskable Interrupt input.

.

JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points.

.

Dedicated DMA controller.

.

Selectable display resolution

.

Supports up to 24-bit true-colour mode.

.

SD/MMC memory card interface

.

Two external interrupt inputs configurable as edge/level sensitive

.

One motor control PWM with support for three-phase motor control

.

64KB Flash

.

24KB SRAM
