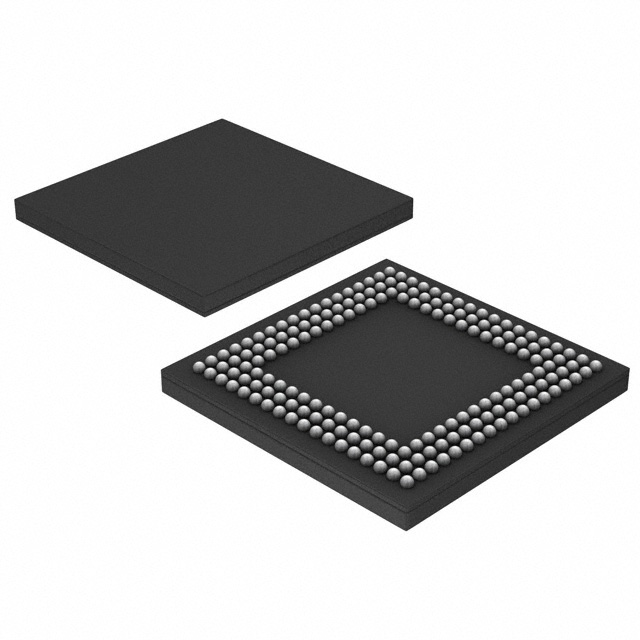

LPC4076FET180,551图片1
LPC4076FET180,551图片2
LPC4076FET180,551图片3
LPC4076FET180,551图片4
LPC4076FET180,551图片5
LPC4076FET180,551图片6
LPC4076FET180,551图片7
LPC4076FET180,551图片8
LPC4076FET180,551图片9
LPC4076FET180,551概述

NXP  LPC4076FET180,551  微控制器, 32位, ARM 皮质-M4, 120 MHz, 256 KB, 80 KB, 180 引脚, TFBGA

The is an ARM Cortex-M4 based digital signal controller for embedded applications requiring a high level of integration and low power dissipation. The ARM Cortex-M4 is a next generation core that offers system enhancements such as low power consumption, enhanced debug features, and a high level of support block integration. The ARM Cortex-M4 CPU incorporates a 3-stage pipeline, uses a Harvard architecture with separate local instruction and data buses as well as a third bus for peripherals, and includes an internal prefetch unit that supports speculative branching.

.
Targeted to operate at up to 120 MHz CPU frequency.
.
One eight-channel 12-bit ADC
.
Two analog comparators
.
Non-maskable Interrupt input.
.
JTAG and Serial Wire Debug, serial trace, eight breakpoints, and four watch points.
.
Dedicated DMA controller.
.
Selectable display resolution
.
Supports up to 24-bit true-colour mode.
.
SD/MMC memory card interface
.
Two external interrupt inputs configurable as edge/level sensitive
.
One motor control PWM with support for three-phase motor control
.
256KB Flash
.
80KB SRAM
LPC4076FET180,551中文资料参数规格
技术参数

针脚数 180

时钟频率 120 MHz

RAM大小 80 KB

位数 32

模数转换数ADC 1

工作温度Max 85 ℃

工作温度Min 40 ℃

耗散功率Max 1500 mW

数模转换数DAC 1

电源电压 2.4V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 2.4 V

封装参数

安装方式 Surface Mount

引脚数 180

封装 TFBGA-180

外形尺寸

封装 TFBGA-180

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tray

制造应用 车用, 通信与网络, Automotive, Consumer Electronics, 医用, Medical, 消费电子产品, 工业, Industrial, Communications & Networking

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/12/17

数据手册

在线购买LPC4076FET180,551
型号: LPC4076FET180,551
制造商: NXP 恩智浦
描述:NXP  LPC4076FET180,551  微控制器, 32位, ARM 皮质-M4, 120 MHz, 256 KB, 80 KB, 180 引脚, TFBGA
