LDO(低压降)线性电压调节器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
LDO(低压降)线性稳压器,150mA,1.0V 至 1.9V,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
立创商城:
正 Vin=5.5V Vout=1.5V~1.5V 150mA 60dB
得捷:
IC REG LINEAR 1.5V 150MA SOT23-5
德州仪器TI:
150-mA, low-IQ, low-dropout voltage regulator with enable
欧时:
### LDO(低压降)线性电压调节器,150mA,1.0V 至 1.9V,Texas Instruments### LDO(低压降)线性电压调节器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
贸泽:
低压差稳压器 MicroPwr 150mA LDO CMOS Vtg Reg
e络盟:
TEXAS INSTRUMENTS LP5951MF-1.5/NOPB 电压稳压器, LDO, 可调, 1.8V至5.5V输入, 200mV压差, 1.3V至3.7V/150mA输出, SOT-23-5
艾睿:
Say goodbye to unstable voltages with this LDO LP5951MF-1.5/NOPB linear regulator from Texas Instruments. It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.15 A. This will operate at a minimum voltage of 1.8 V and a maximum voltage of 5.5 V, making it easy to control the power in your circuit. With a fixed output that has a voltage of 1.5 V, this is power management at its best. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Chip1Stop:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Verical:
LDO Regulator Pos 1.5V 0.15A 5-Pin SOT-23 T/R
Newark:
# TEXAS INSTRUMENTS LP5951MF-1.5/NOPB IC, V REG, LDO, 150MA, SMD, SOT23-5
DeviceMart:
IC REG LDO 1.5V .15A SOT23-5
容差 ±3.5 %
输出接口数 1
输出电压 1.5 V
输出电流 150 mA
针脚数 5
静态电流 70 µA
输出电容类型 Ceramic
跌落电压 200 mV
调节输出数 1
输入电压Max 5.5 V
输入电压Min 1.8 V
输出电压Max 3.7 V
输出电压Min 1.3 V
输出电流Max 0.15 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
电源电压Max 5.5 V
电源电压Min 1.8 V
输入电压 5.5V ~ 1.8V
安装方式 Surface Mount
引脚数 5

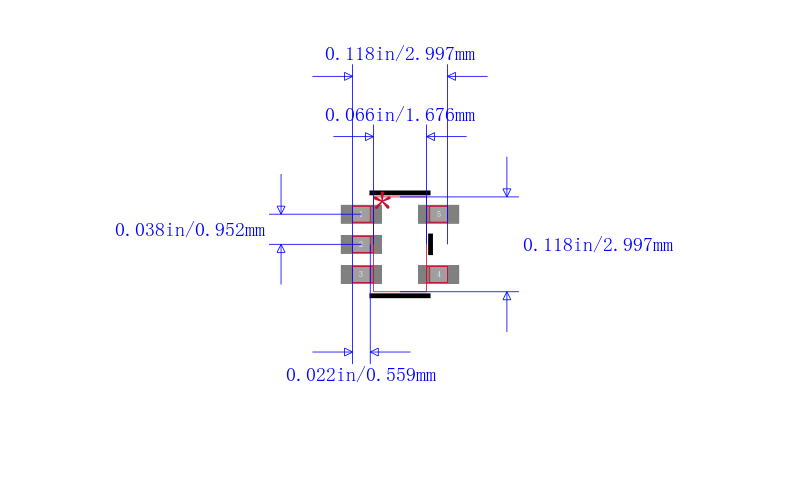

封装 SOT-23-5
长度 2.15 mm
宽度 1.4 mm
高度 1 mm
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP5951MF-1.5/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP5951MFX-1.5/NOPB 德州仪器 | 类似代替 | LP5951MF-1.5/NOPB和LP5951MFX-1.5/NOPB的区别 |
LP5951MF-1.5 德州仪器 | 类似代替 | LP5951MF-1.5/NOPB和LP5951MF-1.5的区别 |
ADP121-AUJZ15R7 亚德诺 | 功能相似 | LP5951MF-1.5/NOPB和ADP121-AUJZ15R7的区别 |
