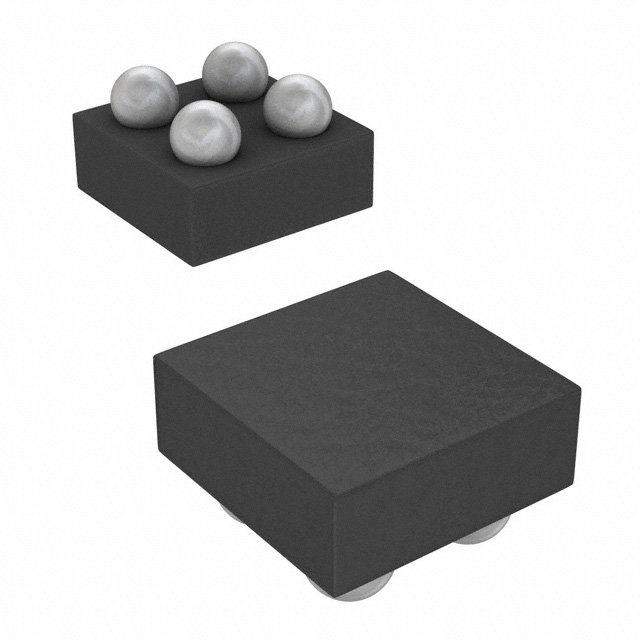

TEXAS INSTRUMENTS LP5907UVE-3.3/NOPB 芯片, 稳压器, LDO, 固定, 3.3V, 250mA, DSBGA-4
LDO(低压降)线性稳压器,250mA,Texas Instruments
得捷:
IC REG LINEAR 3.3V 250MA 4DSBGA
立创商城:
LP5907UVE-3.3/NOPB
德州仪器TI:
250-mA, low-noise, high-PSRR, ultra-low-dropout voltage regulator with low IQ and enable
欧时:
### LDO(低压降)线性稳压器,250mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
e络盟:
TEXAS INSTRUMENTS LP5907UVE-3.3/NOPB 芯片, 稳压器, LDO, 固定, 3.3V, 250mA, DSBGA-4
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO LP5907UVE-3.3/NOPB linear regulator from Texas Instruments is perfect for you! It has an overall accuracy of ±2 %. This voltage regulation device&s;s single output can produce a current up to 0.25Min A. Use this part at voltages between 2.2 V and 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 0.001%/mATyp and line regulation of 0.02%/VTyp is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 0.25A 4-Pin DSBGA T/R
Chip1Stop:
LDO Regulator Pos 3.3V 0.25A 4-Pin DSBGA T/R
Verical:
LDO Regulator Pos 3.3V 0.25A 4-Pin DSBGA T/R
Newark:
# TEXAS INSTRUMENTS LP5907UVE-3.3/NOPB Fixed LDO Voltage Regulator, 2.2V to 5.5V, 120mV Dropout, 3.3Vout, 250mAout, DSBGA-4
输出接口数 1
输出电压 3.3 V
输出电流 250 mA
供电电流 25µA ~ 425µA
针脚数 4
静态电流 425 µA
输出电容类型 Ceramic
跌落电压 120 mV
调节输出数 1
过温保护 Yes
输入电压Max 5.5 V
输入电压Min 2.2 V
输出电压Min 3.3 V
输出电流Max 0.25 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±2 %
输入电压 ≤5.5 V
安装方式 Surface Mount
引脚数 4
封装 XFBGA-4
长度 0.68 mm
宽度 0.675 mm
高度 0.22 mm
封装 XFBGA-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LP5907UVE-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LP5907UVX-3.3/NOPB 德州仪器 | 类似代替 | LP5907UVE-3.3/NOPB和LP5907UVX-3.3/NOPB的区别 |
