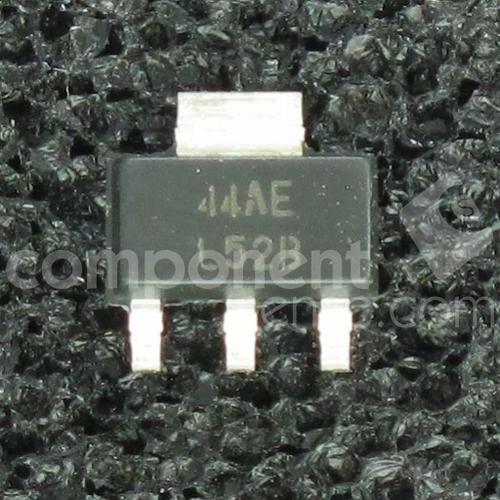

TEXAS INSTRUMENTS LM3940IMP-3.3 固定电压稳压器, LDO, 0V至7.5V, 500mV压差, 3.3V输出, 1A输出, SOT-223-4
Linear Voltage Regulator IC 1 Output 1A SOT-223-4
得捷:
IC REG LINEAR 3.3V 1A SOT223-4
e络盟:
TEXAS INSTRUMENTS LM3940IMP-3.3 固定电压稳压器, LDO, 0V至7.5V, 500mV压差, 3.3V输出, 1A输出, SOT-223-4
艾睿:
Use this LDO LM3940IMP-3.3 linear regulator from Texas Instruments to vary your voltage levels to your desired level. Its typical dropout voltage at current is 0.11@100mA|0.5@1A V. This voltage regulation device&s;s single output can produce a current up to 1 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 4.5 V that does not exceed 7.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 50mV and line regulation of 40mV is necessary for providing a constant voltage level at your output. This product will be shipped in tape and reel packaging so that components can be mounted effectively. The maximum dropout voltage is 0.8@1A|0.15@100mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.
安富利:
LDO Regulator Pos 3.3V 1A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 3.3V 1A 4-Pin3+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 3.3V 1A 4-Pin3+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS LM3940IMP-3.3 Fixed LDO Voltage Regulator, 0V to 7.5V, 110mV Dropout, 3.3Vout, 1Aout, SOT-223-3
力源芯城:
用于5V~3.3V转换的1A低压降稳压器
DeviceMart:
IC REG LDO 3.3V 1A SOT-223
Win Source:
IC REG LDO 3.3V 1A SOT223
电源电压DC 7.50V max
额定电流 1.00 A
输出接口数 1
输入电压DC 5.00 V
输出电压 3.3 V
输出电流 1 A
供电电流 15 mA
针脚数 4
静态电流 10 mA
输出电容类型 Ceramic
跌落电压 500 mV
调节输出数 1
输入电压Max 7.5 V
输入电压Min 0 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 ≤7.5 V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
高度 1.7 mm
封装 TO-261-4
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3940IMP-3.3 TI 德州仪器 | 当前型号 | 当前型号 |
ADP3338AKCZ-1.5-R7 亚德诺 | 功能相似 | LM3940IMP-3.3和ADP3338AKCZ-1.5-R7的区别 |
