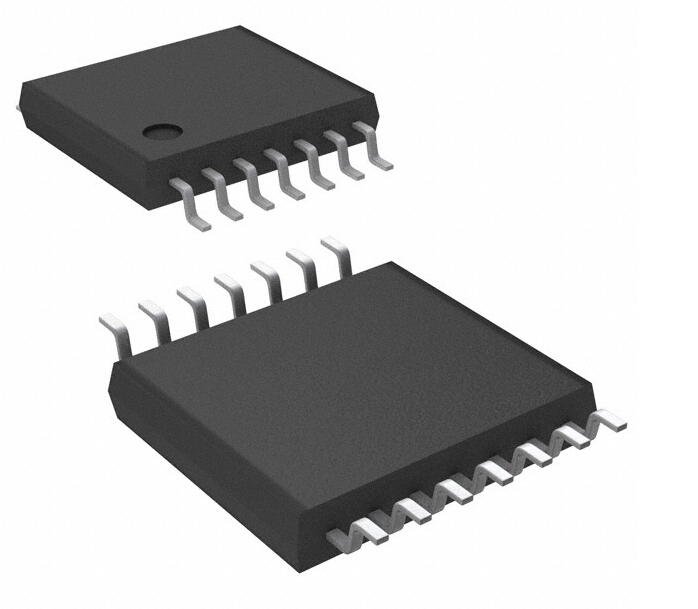

TEXAS INSTRUMENTS LM2902PWR. 芯片, 运算放大器, 1.2MHZ, 0.5V/US, TSSOP-14
通用,LM 系列
Texas Instruments 的一系列通用运算放大器适用于多种使用。 这些设备在非专业应用中提供经济型性能,并提供单路、双路和四路配置。 该系列包括多种通孔和表面安装封装。 运算放大器 LM 系列中的很多设备提供低功耗,且能够采用单电源操作,带包括接地在内的输入共模电压。
得捷:
IC OPAMP GP 4 CIRCUIT 14TSSOP
立创商城:
lm2902pwr
德州仪器TI:
Quad, 26-V, 1.2-MHz operational amplifier
欧时:
### 通用运算放大器,LM 系列Texas Instruments 的一系列通用运算放大器适用于多种使用。 这些设备在非专业应用中提供经济型性能,并提供单路、双路和四路配置。 该系列包括多种通孔和表面安装封装。 运算放大器 LM 系列中的很多设备提供低功耗,且能够采用单电源操作,带包括接地在内的输入共模电压。### 运算放大器,Texas Instruments
e络盟:
运算放大器, 四路, 4个放大器, 1.2 MHz, 0.5 V/µs, ± 1.5V 至 ± 13V, TSSOP, 14 引脚
艾睿:
The large amount of gain, or amplification, produced by this general purpose amplifier LM2902PWR OP amp from Texas Instruments make it a commonly used component in nearly all electronics today. Its typical dual supply voltage is ±3|±5|±9|±12 V, with a minimum of ±1.5 V and maximum of ±13 V. This op amp has a minimum operating temperature of -40 °C and a maximum of 125 °C. This device uses one or two power supplies. It has 4 channels per chip. This device is made with bipolar technology.
安富利:
OP Amp Quad GP ±13V/26V 14-Pin TSSOP T/R
Chip1Stop:
Standard Linear AmplifierQuadruple Operational Amplifier OP Amp Quad GP ±13V/26V 14-Pin TSSOP T/R
Verical:
Op Amp Quad GP ±13V/26V 14-Pin TSSOP T/R
Newark:
# TEXAS INSTRUMENTS LM2902PWR Operational Amplifier, Quad, 4 Amplifier, 1.2 MHz, 0.5 V/µs, ± 1.5V to ± 13V, TSSOP, 14 Pins
力源芯城:
四路运算放大器
DeviceMart:
IC OPAMP QUAD 26V 14TSSOP
Win Source:
IC OPAMP GP 1.2MHZ 14TSSOP
输出电流 30mA @15V
供电电流 1.4 mA
电路数 4
通道数 4
针脚数 14
共模抑制比 50 dB
输入补偿漂移 7.00 µV/K
带宽 1.2 MHz
转换速率 500 mV/μs
增益频宽积 1.2 MHz
输入补偿电压 3 mV
输入偏置电流 20 nA
工作温度Max 125 ℃
工作温度Min -40 ℃
增益带宽 1.2 MHz
共模抑制比Min 50 dB
电源电压 1.5V ~ 13V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 1.15 mm
封装 TSSOP-14
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电机驱动与控制, 消费电子产品, 测试与测量, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2902PWR TI 德州仪器 | 当前型号 | 当前型号 |
LM2902PW 德州仪器 | 完全替代 | LM2902PWR和LM2902PW的区别 |
LM2902KPWR 德州仪器 | 类似代替 | LM2902PWR和LM2902KPWR的区别 |
LM2902PWRG4 德州仪器 | 类似代替 | LM2902PWR和LM2902PWRG4的区别 |
