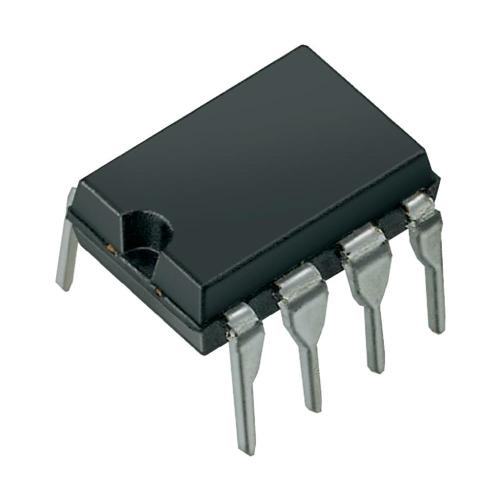

STMICROELECTRONICS LM358N 运算放大器, 双路, 1.1 MHz, 2个放大器, 0.6 V/µs, 3V 至 30V, DIP, 8 引脚
These circuits consist of two independent, high-gain, internally frequency-compensated op-amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage. These circuits can be directly supplied with the standard +5 V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply.
- .
- Large DC voltage gain
- .
- Input common-mode voltage range includes negative rails
- .
- Differential input voltage range equal to the power supply voltage
电源电压DC 5.00 V
工作电压 3V ~ 32V
供电电流 700 µA
电路数 2
通道数 2
针脚数 8
耗散功率 500 mW
共模抑制比 70 dB
带宽 1.1 MHz
转换速率 600 mV/μs
增益频宽积 1.1 MHz
输入补偿电压 2 mV
输入偏置电流 20 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
增益带宽 1.1 MHz
电源电压 3V ~ 30V
电源电压Max 30 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 8
封装 DIP-8
长度 9.27 mm
宽度 6.35 mm
高度 3.3 mm
封装 DIP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
制造应用 通信与网络, Sensing & Instrumentation, 传感与仪器, Communications & Networking, Audio, 音频
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LM358N ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
LM158N 意法半导体 | 完全替代 | LM358N和LM158N的区别 |
LM258N 意法半导体 | 类似代替 | LM358N和LM258N的区别 |
LM258AN 意法半导体 | 类似代替 | LM358N和LM258AN的区别 |
