TEXAS INSTRUMENTS LM3477MM 控制器, 高压侧, N通道, 用于开关稳压器, 35V-2.97V电源, 500 kHz, 200mA输出, MSOP-8
Ensure that all of the components within your circuit design receive the proper DC voltage by using Texas Instruments" buck DC voltage controller. This DC voltage controller has single output. With an output that has a voltage of 1.265Min V, this is power management at its best. Its output produces a current of 6 A. This DC voltage controller has an input voltage of 2.97 to 35 V. Its switching regulator has a frequency of 500Typ kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This DC voltage controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
频率 500 kHz
电源电压DC 2.97V min
输出接口数 1
输入电压DC 12.0 V
输出电压 1.265 V
输出电流 6 A
针脚数 8
静态电流 2.00 mA
调节输出数 1
开关频率 500 kHz
拓扑结构 Buck
占空比 93 %
输入电压Max 35 V
输入电压Min 2.97 V
最大占空比 93 %
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.97V ~ 35V
电源电压Max 35 V
电源电压Min 2.97 V
输入电压 2.97V ~ 35V
安装方式 Surface Mount
引脚数 8

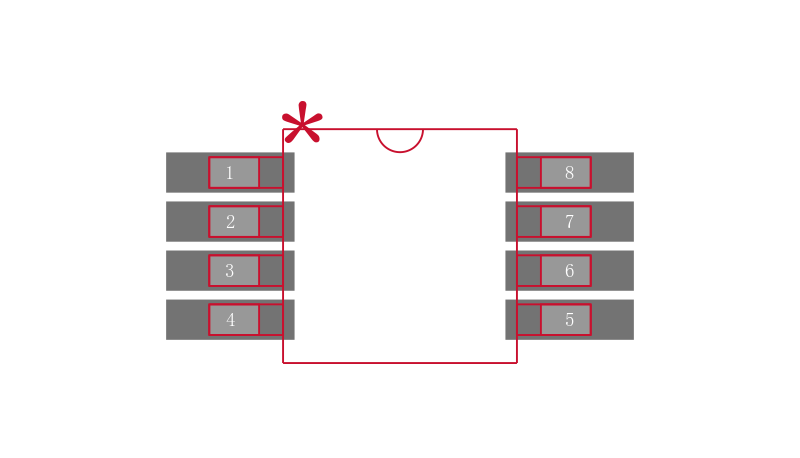

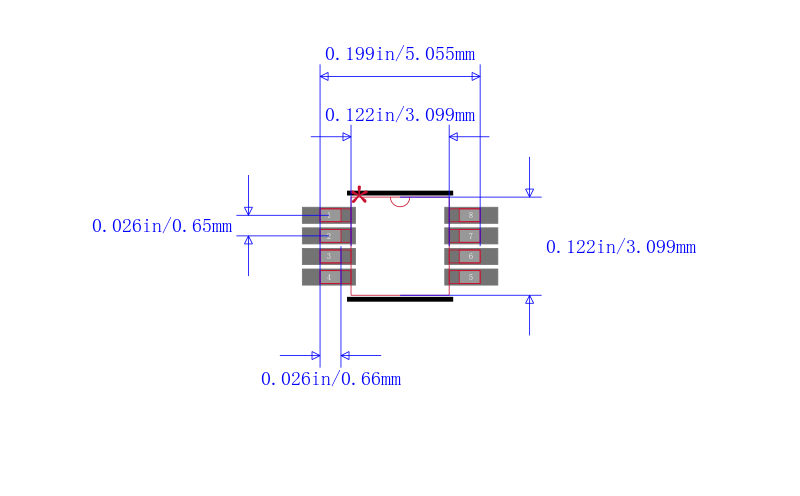

封装 MSOP-8
封装 MSOP-8
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM3477MM TI 德州仪器 | 当前型号 | 当前型号 |
LM3477MM/NOPB 德州仪器 | 完全替代 | LM3477MM和LM3477MM/NOPB的区别 |
LM3477MMX/NOPB 德州仪器 | 类似代替 | LM3477MM和LM3477MMX/NOPB的区别 |
LM3477MMX 德州仪器 | 功能相似 | LM3477MM和LM3477MMX的区别 |
