TEXAS INSTRUMENTS LM393PWR 模拟比较器, 双路, 差分, 2, 1.3 µs, 2V 至 36V, TSSOP, 8 引脚
The is a Dual Differential Comparator designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 to 36V and VCC is at least 1.5V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships. The LM393 device is characterized for operation from 0 to 70°C.
电源电压DC 4.00V min
输出电流 20 mA
供电电流 1 mA
电路数 2
通道数 2
针脚数 8
静态电流 800 µA
输入补偿电压 5 mV
输入偏置电流 250 nA
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 2V ~ 36V
电源电压Max 30 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 8

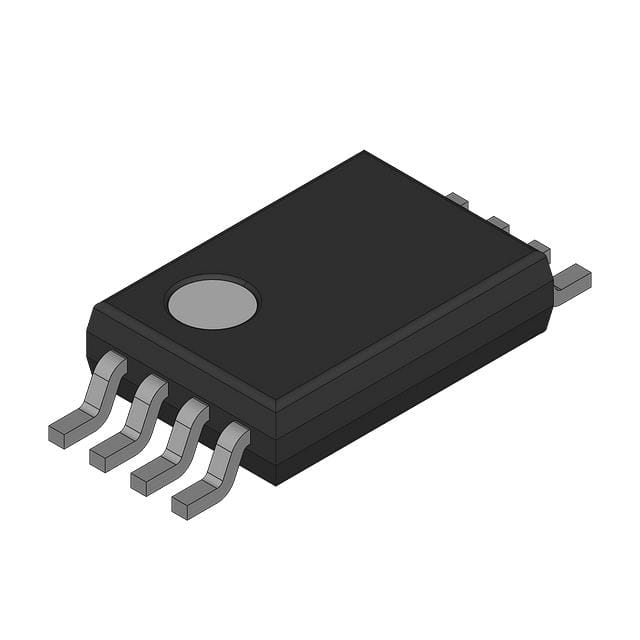

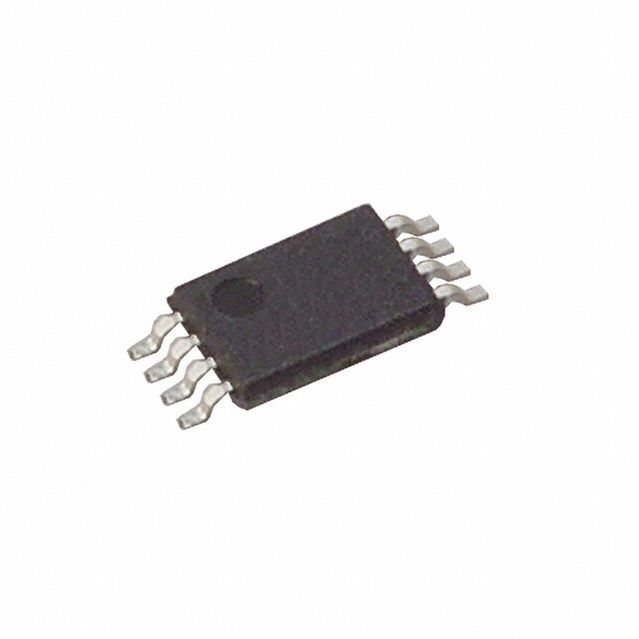

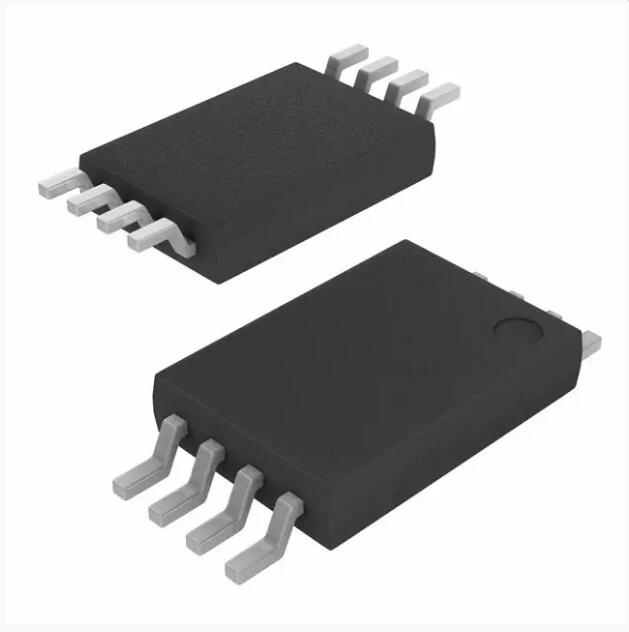

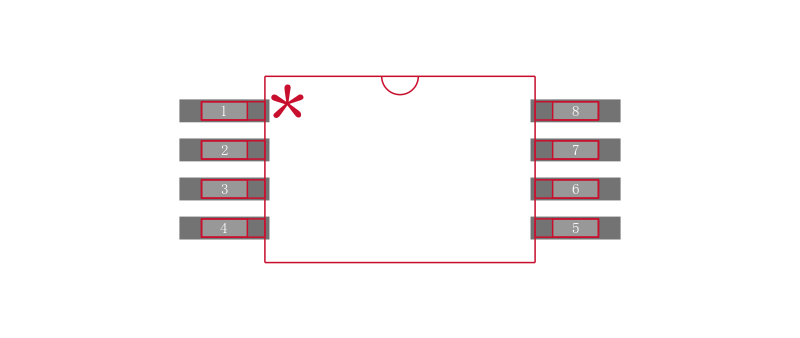

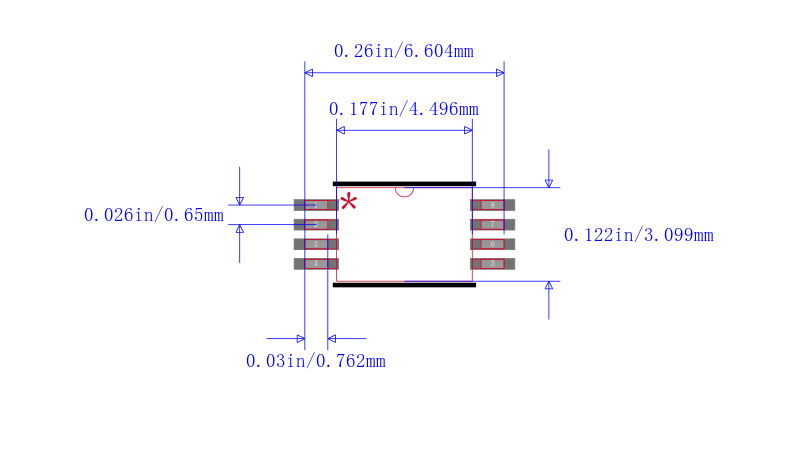

封装 TSSOP-8
封装 TSSOP-8
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM393PWR TI 德州仪器 | 当前型号 | 当前型号 |
LM393PW 德州仪器 | 完全替代 | LM393PWR和LM393PW的区别 |
LM393PWRG4 德州仪器 | 完全替代 | LM393PWR和LM393PWRG4的区别 |
LM393PWRG3 德州仪器 | 类似代替 | LM393PWR和LM393PWRG3的区别 |
