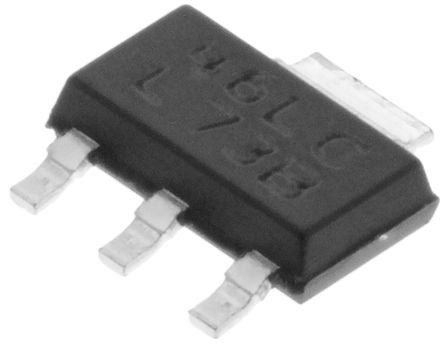

TEXAS INSTRUMENTS LM2937IMP-10/NOPB 固定电压稳压器, LDO, 0V至26V, 500mV压差, 10V输出, 500mA输出, SOT-223-3
LDO(低压降)线性稳压器,500mA,Texas Instruments
### LDO(低压降)线性稳压器,Texas Instruments
低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
欧时:
### LDO(低压降)线性稳压器,500mA,Texas Instruments### LDO(低压降)线性稳压器,Texas Instruments低压降或 LDO 为线性电压稳压器。 我们有多种系列的线性稳压器。 LDO 稳压器可在输入 - 输出差分电压较小时运行。 LDO 电压稳压器可提供快速瞬态响应、宽输入电压范围、低静态电流、低噪声、高 PSRR。
得捷:
IC REG LINEAR 10V 400MA SOT223-4
立创商城:
LM2937IMP-10/NOPB
德州仪器TI:
500-mA, 26-V, high-PSRR, low-dropout voltage regulator
e络盟:
TEXAS INSTRUMENTS LM2937IMP-10/NOPB. 芯片, 稳压器, LDO, 10V, 0.5A, SOT-223-4, 整卷
艾睿:
Having trouble maintaining a steady voltage? This LDO LM2937IMP-10/NOPB linear regulator from Texas Instruments will give you control over the voltage levels of your circuit. It has an overall accuracy of ±5 %. Its typical dropout voltage at current is 0.11@50mA|0.5@500mA V. This voltage regulation device&s;s single output can produce a current up to 0.5 A. Use this part at voltages lower than 26 V. With a fixed output that has a voltage of 10 V, this is power management at its best. Your circuit has the capability to produce a constant current at its output by using a load regulation of 10mVTyp and line regulation of 30mVTyp. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 85 °C. The maximum dropout voltage is 0.25@50mA|1@500mA V.
安富利:
LDO Regulator Pos 10V 0.5A 4-Pin3+Tab SOT-223 T/R
Chip1Stop:
LDO Regulator Pos 10V 0.5A 4-Pin3+Tab SOT-223 T/R
Verical:
LDO Regulator Pos 10V 0.5A Automotive 4-Pin3+Tab SOT-223 T/R
Newark:
# TEXAS INSTRUMENTS LM2937IMP-10/NOPB Fixed LDO Voltage Regulator, 0V to 26V, 500mV Dropout, 10Vout, 500mAout, SOT-223-3
DeviceMart:
IC REG LDO 10V .4A SOT-223
电源电压DC 26.0 V
额定电流 500 A
输出接口数 1
输入电压DC 26.0V max
输出电压 10 V
输出电流 500 mA
供电电流 2mA ~ 20mA
针脚数 3
静态电流 2.00 mA
输出电容类型 Ceramic
跌落电压 500 mV
调节输出数 1
输入电压Max 26 V
输入电压Min 0 V
输出电压Min 10 V
输出电流Max 500 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±5 %
输入电压 26 V
安装方式 Surface Mount
引脚数 4
封装 TO-261-4
长度 6.5 mm
宽度 3.56 mm
高度 1.6 mm
封装 TO-261-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2937IMP-10/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2937IMPX-10/NOPB 德州仪器 | 类似代替 | LM2937IMP-10/NOPB和LM2937IMPX-10/NOPB的区别 |
LM2937IMP-10 德州仪器 | 类似代替 | LM2937IMP-10/NOPB和LM2937IMP-10的区别 |
LM2937IMPX-10 德州仪器 | 类似代替 | LM2937IMP-10/NOPB和LM2937IMPX-10的区别 |
