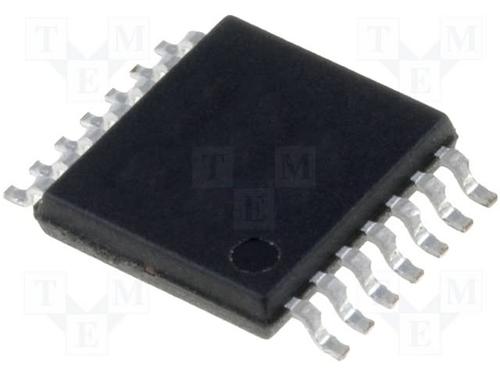

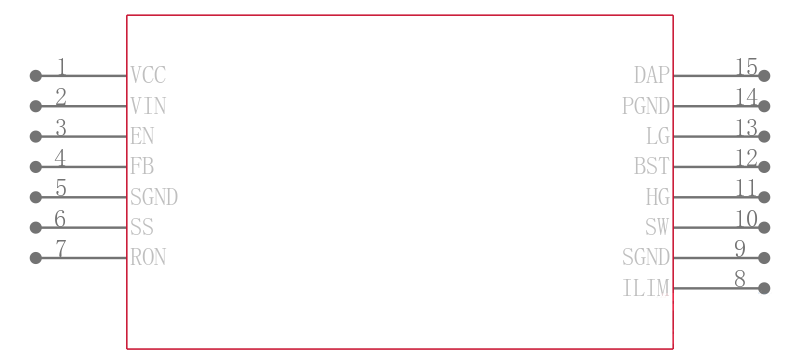

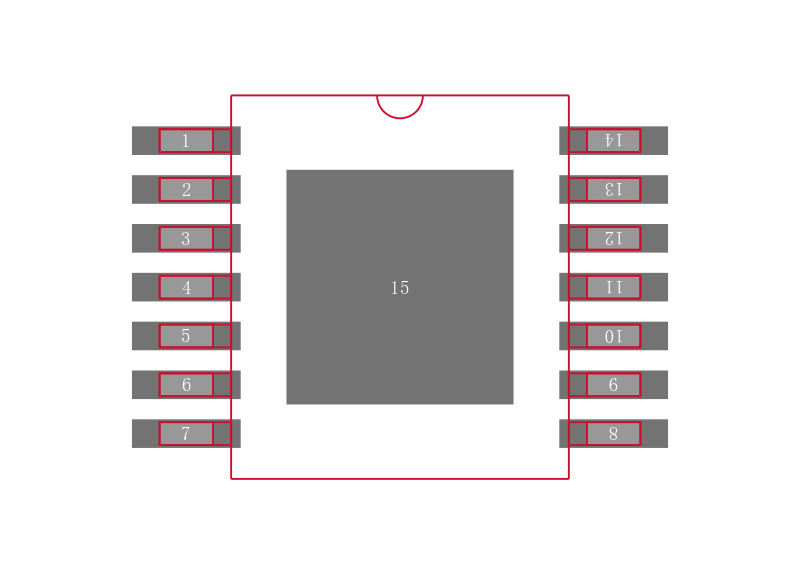

TEXAS INSTRUMENTS  LM3150MHE  直流/直流控制器, 恒定通导时间, 6V至42V, 1路输出, 同步降压, 1MHz, TSSOP-14

The is a SIMPLE SWITCHER® synchronous Step-down Controller capable of providing up to 12A of output current in a typical application. Operating with an input voltage range of 6V to 42V, the controller features an adjustable output voltage down to 0.6V. The switching frequency is adjustable up to 1MHz and the synchronous architecture provides for highly efficient designs. The controller employs a constant on-time architecture with a proprietary emulated ripple mode control that allows for the use of low ESR output capacitors, which reduces overall solution size and output voltage ripple. The COT regulation architecture allows for fast transient response and requires no loop compensation, which reduces external component count and reduces design complexity. Fault protection features such as thermal shutdown, under-voltage lockout, overvoltage protection, short-circuit protection, current limit and output voltage pre-bias start-up allow for a reliable and robust solution.

.

PowerWise step-down controller

.

No loop compensation required

.

Fully WEBENCH® enabled

.

Low external component count

.

Constant on-time COT control

.

Ultra-fast transient response

.

Stable with low ESR capacitors

.

Output voltage PreBias start-up

.

Valley current limit

.

Programmable soft-start

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
