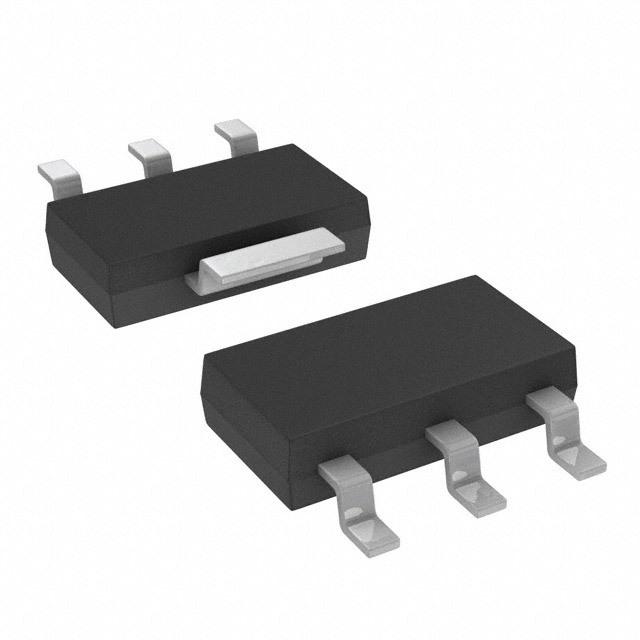

TEXAS INSTRUMENTS LM2937IMPX-15/NOPB 固定电压稳压器, LDO, 0V至26V, 500mV压差, 15V输出, 500mA输出, SOT-223-4
The is a 15V low dropout Positive Voltage Regulator capable of supplying up to 500mA of load current. The use of a PNP power transistor provides a low dropout voltage characteristic. With a load current of 500mA the minimum input to output voltage differential required for the output to remain in regulation is typically 0.5V. Special circuitry has been incorporated to minimize the quiescent current to typically only 10mA with a full 500mA load current when the input to output voltage differential is greater than 3V. The LM2937 requires an output bypass capacitor for stability. As with most low dropout regulator, the ESR of this capacitor remains a critical design parameter, but this regulator includes special compensation circuitry that relaxes ESR requirements. The device is stable for all ESR below 3R. This allows the use of low ESR chip capacitors.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
输出接口数 1
输出电压 15 V
输出电流 500 mA
供电电流 2mA ~ 20mA
针脚数 4
静态电流 2 mA
输出电容类型 Ceramic
跌落电压 500 mV
调节输出数 1
输入电压Max 26 V
输入电压Min 0 V
输出电压Min 15 V
输出电流Max 0.5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±5 %
输入电压 26 V
安装方式 Surface Mount
引脚数 4

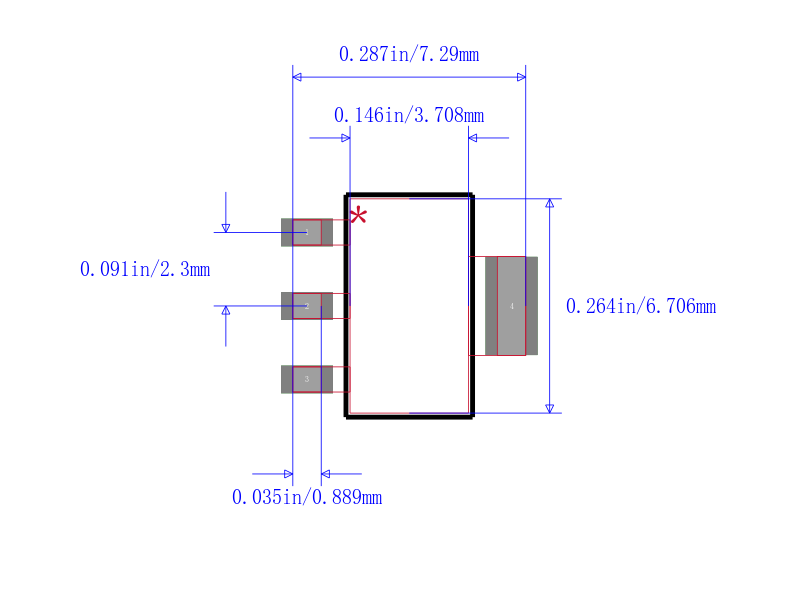

封装 TO-261-4
封装 TO-261-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
