LM2592HVT-ADJ

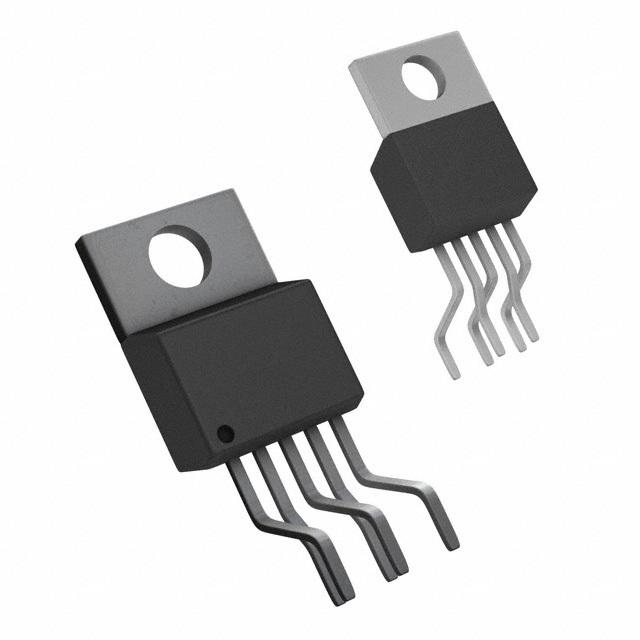

TEXAS INSTRUMENTS  LM2592HVT-ADJ  直流-直流开关降压逐步递减稳压器, 可调, 4.5V-60V输入, 1.2V-57V输出, 2A输出, TO-220-5

The is a SIMPLE SWITCHER® step-down Voltage Regulator provides all the active functions for a step-down buck switching regulator, capable of driving a 2A load with excellent line and load regulation. This series of switching regulator is similar to the LM2593HV, but without some of the supervisory and control features of the latter. Requiring a minimum number of external components, this regulator is simple to use and include internal frequency compensation, improved line and load specifications and a fixed-frequency oscillator. The LM2592HV operates at a switching frequency of 150kHz, thus allowing smaller sized filter components than what would be needed with lower frequency switching regulator. Features include a ±4% tolerance on output voltage under all conditions of input voltage and output load conditions and ±15% on the oscillator frequency. External shutdown is included, featuring typically 90µA standby current.

.

ON and OFF control

.

Low power standby mode

.

High efficiency

.

Thermal shutdown and current-limit protection

.

±4% Maximum over line and load conditions

.

90µA Typical quiescent current
