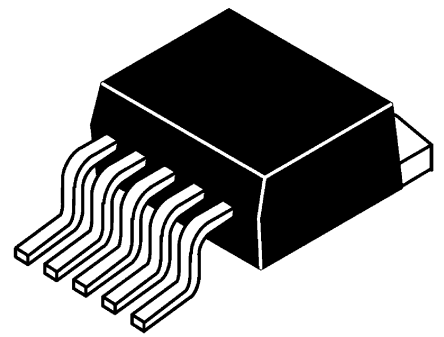

TEXAS INSTRUMENTS LM2591HVS-3.3/NOPB 芯片, 降压稳压器, TO-263-5
SIMPLE SWITCHER® 降压调节器,LM259x 系列
### 直流/直流开关调节器,Texas Instruments
用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
得捷:
IC REG BUCK 3.3V 1A TO263-5
欧时:
### SIMPLE SWITCHER® 降压调节器,LM259x 系列### 直流/直流开关调节器,Texas Instruments用于高达 75V 的宽电压输入设计,以及易用性和灵活性之间的平衡。
立创商城:
降压型 Vin=4.5V~60V Vout=3.3V 1A
德州仪器TI:
SIMPLE SWITCHER Power Converter 150 kHz 1A Step-Down Voltage Regulator
贸泽:
Switching Voltage Regulators pwr Cnvtr 150 kHz 1A SD Vtg Reg
e络盟:
芯片, 降压稳压器, TO-263-5
艾睿:
Adjust the voltage level of your devices with this step down LM2591HVS-3.3/NOPB DC to DC converter from Texas Instruments. This converter&s;s single output can produce a current up to 1 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 60 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. This converter is 77typ % efficient. Its switching regulator has a frequency of 173 kHz. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This converter has an operating temperature range of -40 °C to 125 °C.
Chip1Stop:
Conv DC-DC Single Step Down 4.5V to 60V 6-Pin5+Tab TO-263 Rail
Verical:
Conv DC-DC 4.5V to 60V Step Down Single-Out 3.3V 1A 6-Pin5+Tab TO-263 Tube
Newark:
# TEXAS INSTRUMENTS LM2591HVS-3.3/NOPB Buck Step Down Switching Regulator, Fixed, 4.5V-60Vin, 3.3V/1A out, 150 kHz, TO-263-5
DeviceMart:
IC REG BUCK 3.3V 1A TO263-5
Win Source:
Buck Switching Regulator IC Positive Fixed 3.3V 1 Output 1A TO-263-6, D2Pak 5 Leads + Tab, TO-263BA
电源电压DC 60.0V max
输出接口数 1
输出电压 3.3 V
输出电流 1 A
针脚数 5
静态电流 1.00 mA
调节输出数 1
开关频率 150 kHz
拓扑结构 Buck
输入电压Max 60 V
输入电压Min 4.5 V
输出电压Min 3.3 V
输出电流Max 1 A
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5 V
电源电压Min 4.5 V
输入电压 4.5V ~ 60V
安装方式 Surface Mount
引脚数 5
封装 TO-263-6
长度 10.16 mm
宽度 8.64 mm
高度 4.57 mm
封装 TO-263-6
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LM2591HVS-3.3/NOPB TI 德州仪器 | 当前型号 | 当前型号 |
LM2591HVS-3.3 德州仪器 | 完全替代 | LM2591HVS-3.3/NOPB和LM2591HVS-3.3的区别 |
LM2591HVSX-3.3/NOPB 德州仪器 | 类似代替 | LM2591HVS-3.3/NOPB和LM2591HVSX-3.3/NOPB的区别 |
LM2591HVSX-3.3 德州仪器 | 类似代替 | LM2591HVS-3.3/NOPB和LM2591HVSX-3.3的区别 |
