LM1117DT-3.3

TEXAS INSTRUMENTS  LM1117DT-3.3  芯片, 稳压器 低压差 +3.3V

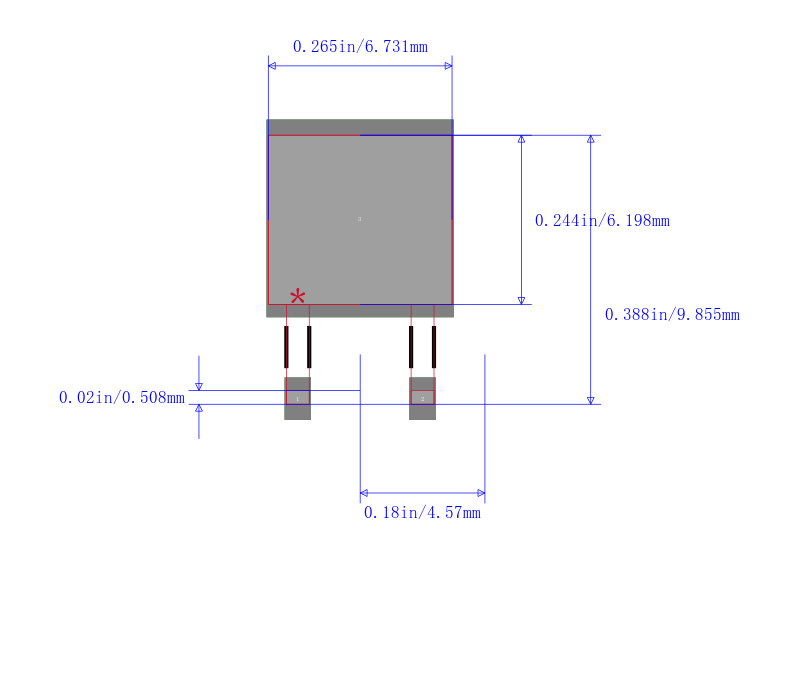

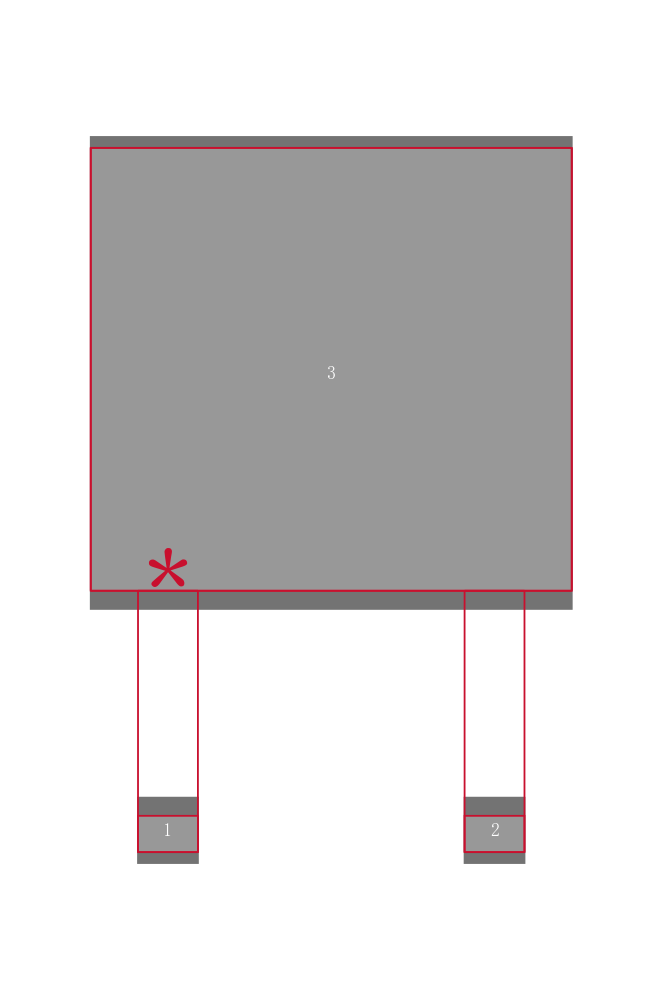

The is a fixed output low dropout LDO linear voltage regulator in 3 pin TO-252 package. This voltage regulator has dropout voltage of 1.2V at 800mA load current. LM1117DT-3.3 has same pin out as Texas Instrument"s industry standard LM317 and it features current limiting and thermal shut down. It includes zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. A minimum of 10µF tantalum capacitor is required at output to improve transient response and stability.

.

Fixed output voltage is 3.3V

.

Output current is 800mA

.

Input voltage range from 2.6V to 15V

.

Line regulation is 0.2% maximum

.

Load regulation is 0.4% maximum

.

Operating temperature range 0°C to 125°C

This device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to MOS gates.
